Configure Terminal Settings Chapter 3
Copy Files on Terminal
You can copy FactoryTalk View ME .mer application files or font files between
nonvolatile memory of the terminal and a USB drive, or SD card.

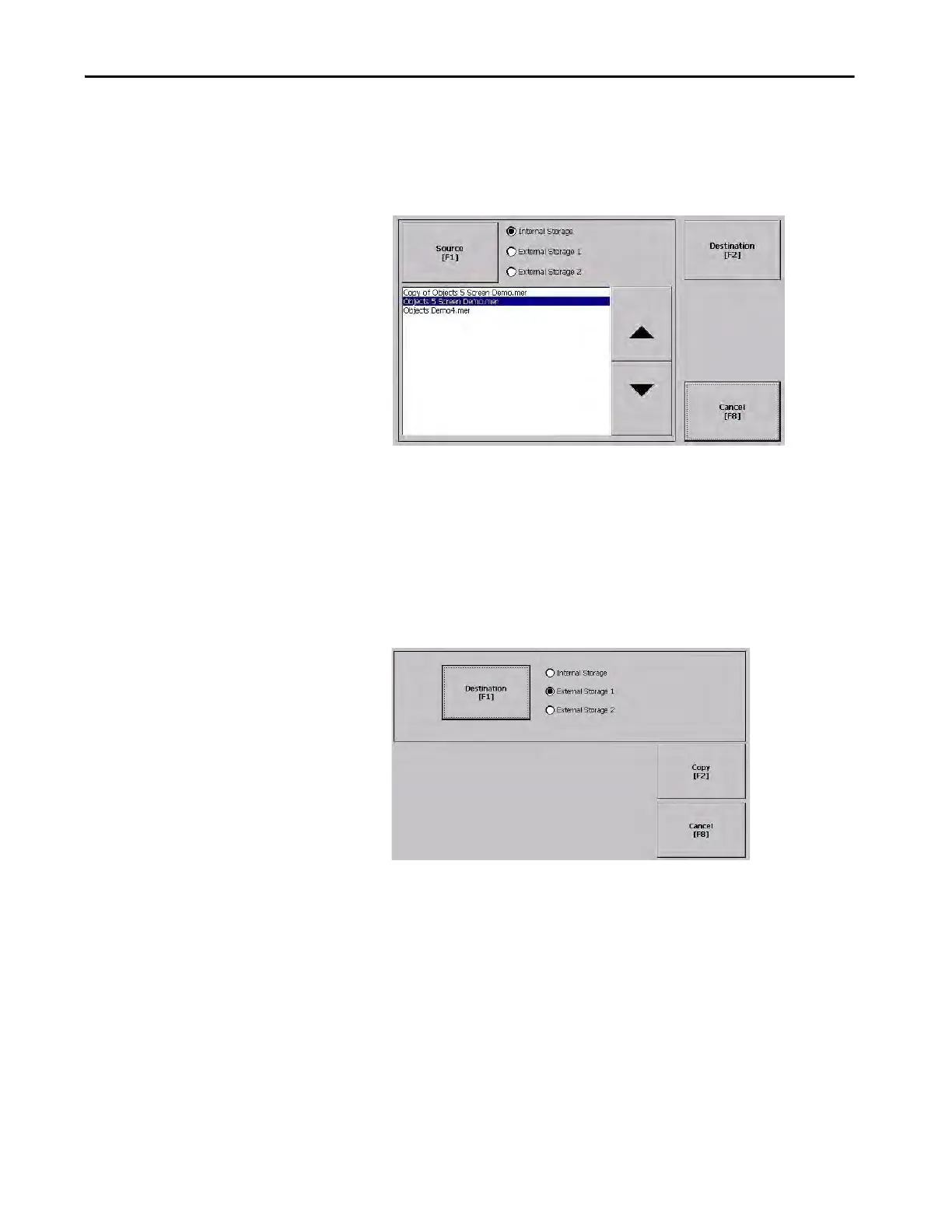

1. Press Terminal Settings, then choose File Management>Copy
Files>Copy Applications or Copy Fonts.
2. To select the location of the file you want to copy, press Source:
• Internal Storage – nonvolatile memory of the terminal.
• External Storage 1 – SD card that is loaded in card slot of terminal.
• External Storage 2 – USB drive that is loaded in USB host port of
terminal.
3. Select a file that appears in the list for the selected storage area.
4. Press Destination on the same dialog box.
5. To select the storage location to copy the file, press Destination.
The destination must be different than the source location.
6. To copy the selected file to the target location, press Copy.
If the file exists, you are asked if it is okay to overwrite the file. Respond
by selecting Yes or No.
TIP If you are saving files to the terminal, be sure to save the .mer files to
My Device\Application Data\Rockwell Software\RSViewME\Runtime\
and save font files to \Rockwell Software\RSViewME\Fonts\.

Allen-Bradley PanelView Plus 7 Specifications

General

Operating System	Windows CE 6.0
Memory	512 MB RAM
Mounting	Panel mount
Display Type	Color TFT LCD
Processor	ARM Cortex-A8
Storage	512 MB Flash
Communication Ports	Ethernet, USB, Serial
Input Voltage	24V DC
Operating Temperature	0°C to 50°C (32°F to 122°F)
Environmental Rating	NEMA 4X
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Relative Humidity	5% to 95% non-condensing
Certifications	CE, UL, cUL
Display Sizes	4.3", 7", 10", 15", 19"
Touchscreen	Resistive or Projected Capacitive (depending on model)
