4-2 Troubleshooting
Fault Indication
Manually Clearing Faults
Automatically Clearing Faults
Auto Restart (Reset/Run)
The Auto Restart feature allows the drive to automatically perform a
fault reset followed by a start attempt without user or application
intervention. This allows remote or “unattended” operation. Only certain
faults are allowed to be reset. Certain faults (Type 2) that indicate
possible drive component malfunction are not resettable.
Caution should be used when enabling this feature, since the drive will
attempt to issue its own start command based on user selected
programming.
Condition
Drive is indicating a fault.

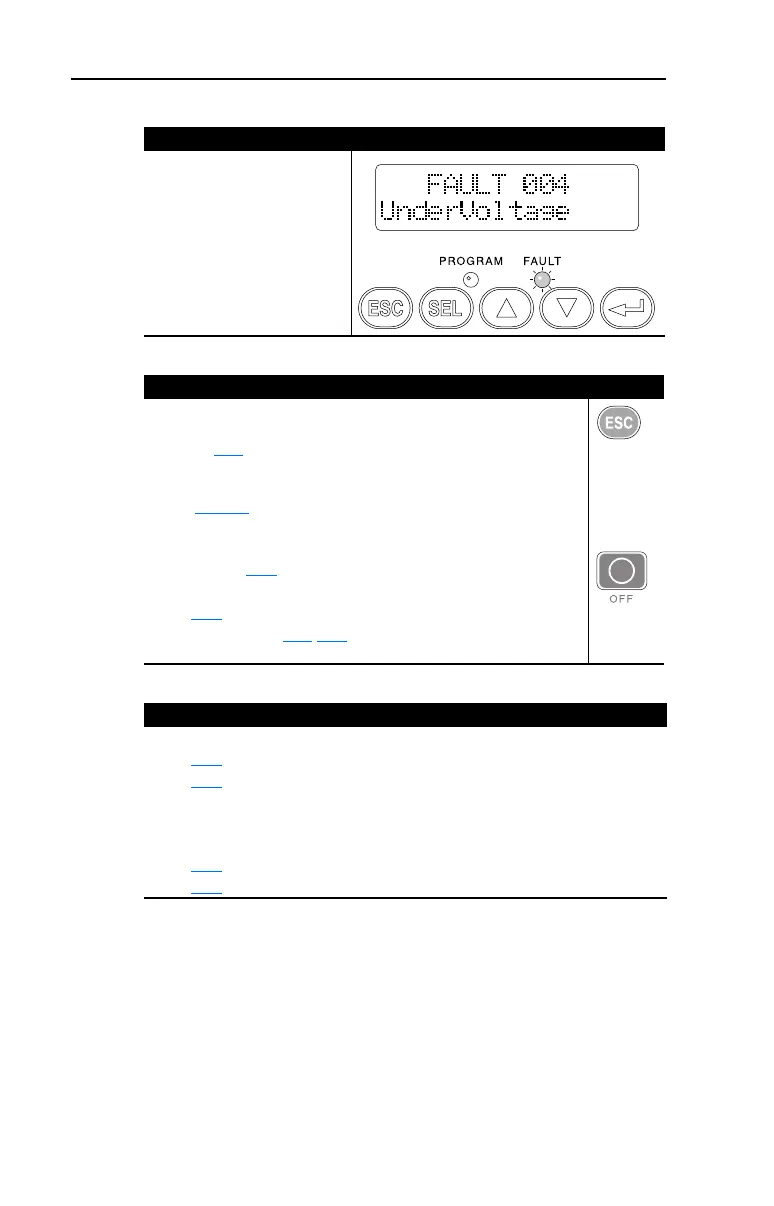

The integral keypad provides
visual notification of a fault
condition by displaying the
following.
• Flashing fault number
• Flashing fault indicator
Press the Escape key to regain
control of the integral keypad.
Step Key(s)
1. Press Esc to acknowledge the fault. The fault information will be
removed so that you can use the integral keypad.
Access b007
[Fault 1 Code] to view the most recent fault information.
2. Address the condition that caused the fault.
The cause must be corrected before the fault can be cleared.
See Table 4.A
.
3. After corrective action has been taken, clear the fault by one of these
methods.
• Press Stop if P037
[Stop Mode] is set to a value between “0” and “3”.
• Cycle drive power.
• Set A197
[Fault Clear] to “1” or “2”.
• Cycle digital input if T051
-T054 [Digital Inx Sel] is set to option 10 “Clear
Fault”.
Option / Step
Clear a Type 1 fault and restart the drive.
1. Set A163
[Auto Rstrt Tries] to a value other than “0”.
2. Set A164
[Auto Rstrt Delay] to a value other than “0”.
Clear an OverVoltage, UnderVoltage or Heatsink OvrTmp fault
without restarting the drive.
1. Set A163
[Auto Rstrt Tries] to a value other than “0”.
2. Set A164
[Auto Rstrt Delay] to “0”.
