Allen-Bradley PowerFlex400 - EMC Line Filters - Dimensions Are in Millimeters and (Inches)

Accessories and Dimensions B-15

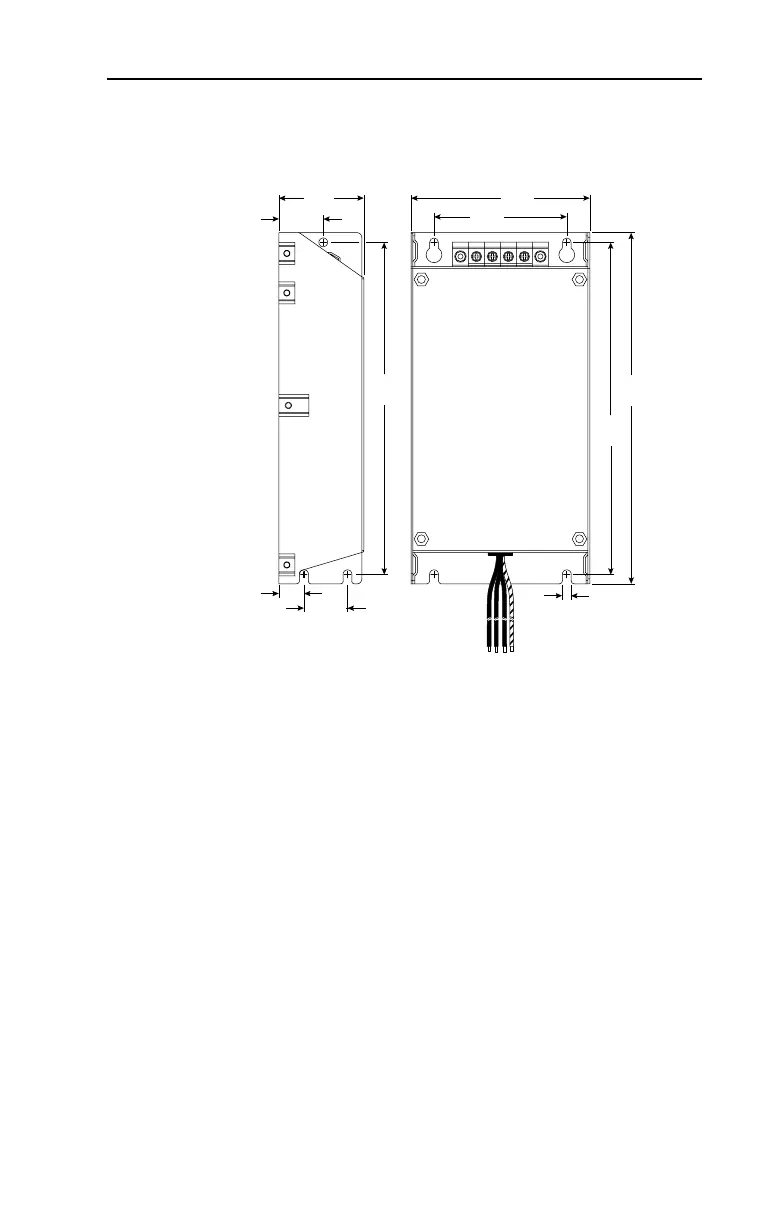

Figure B.8 EMC Line Filters – Dimensions are in millimeters and (inches)
Catalog Numbers: 22-RF018-CS, 22-RF018-CL, 22-RF026-CS, 22-RF026-CL,
22-RF026-CL, 22-RF034-CS
5.5 (0.22)
17
(0.67)
30
(1.18)
90
(3.54)
130
(5.12)
60
(2.36)
32
(1.26)
309
(12.17)
297
(11.69)
297
(11.69)
