G-6 P1 – Floor Level Network (FLN)

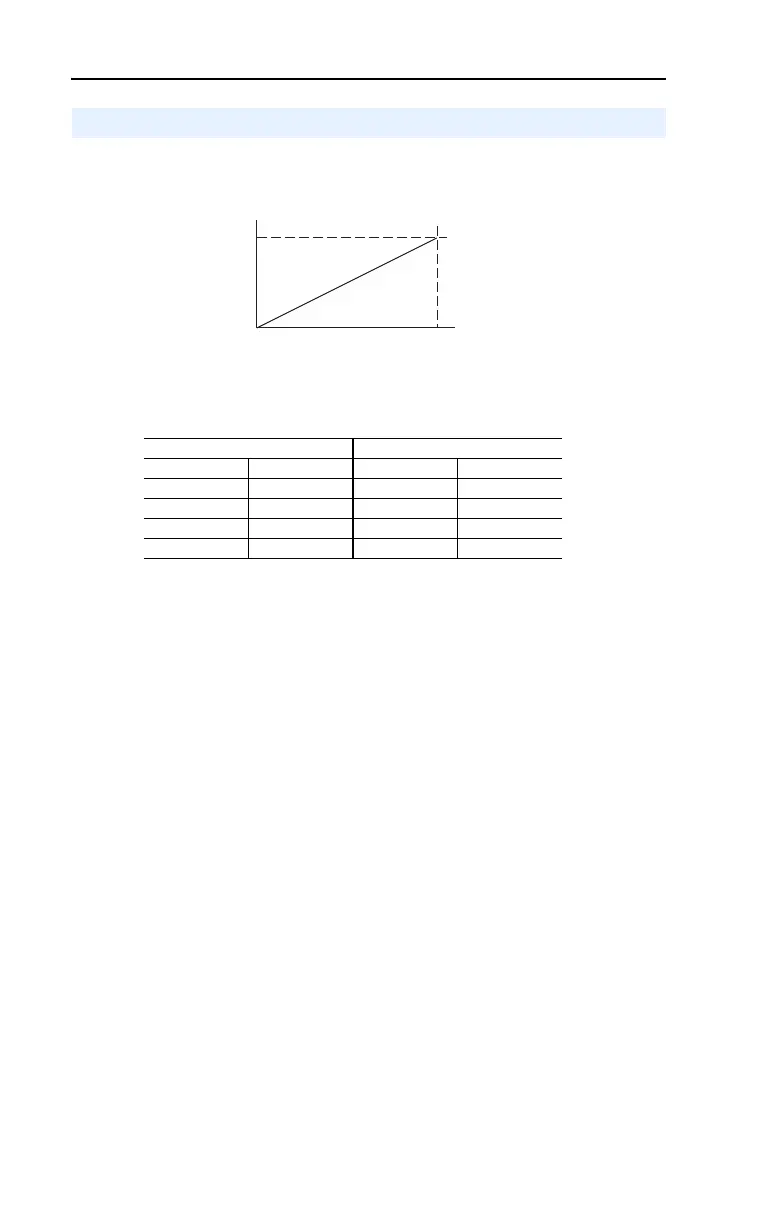

The Reference (Point 92) for P1 is set as a percentage from 0% to
+100%.
Using Percent (%) for the Reference
Table G.3 Example Speed Reference and Feedback for a PowerFlex 400
(P035 = 60 Hz)
Reference (Point 92) PCT Output (Point 4)
Percent Speed Speed Percent
100% 60 Hz 60 Hz 100%
50% 30 Hz 30 Hz 50%
25% 15 Hz 15 Hz 25%
0% 0 Hz 0 Hz 0%
100%
0%
Pr. P035 [Maximum Freq] Value
