1-22 Installation/Wiring
2 Wire Control
Sourcing (SRC),
Internal Supply,
Run FWD/Run REV
• Input must be active for the
drive to run.
• When input is opened, the
drive will stop as specified by
P037 [Stop Mode].
• If both Run FWD and Run
REV inputs are closed at the
same time, an undetermined
state could occur.
• Drive will not run if I/O
Terminal 01 is open. Drive will
coast to stop if opened while
running.
DIP Switch
SNK/SRC = SRC
Parameters
P036 [Start Source] = 2, 3, 4
P037 [Stop Mode] = 0 through 7
A166 [Reverse Disable] = 0 “Enabled”
2 Wire Control with Function
Loss and SW Enable
Sourcing (SRC),
Internal Supply,
Non-Reversing
• Input must be active for the
drive to run.
• When input is opened, the
drive will stop as specified by
P037 [Stop Mode].
• Drive will not run if I/O
Terminal 03 is open. Drive will
coast to stop if opened while
running.
• Drive will fault if I/O Terminal
01 is open. Drive will coast to
stop if opened while running.
Requires drive reset once
terminal is closed.
DIP Switch
SNK/SRC = SRC
Parameters
P036 [Start Source] = 6 “2-W Lvl/Enbl”
P037 [Stop Mode] = 0 through 7
3 Wire Control
Sourcing (SRC),
Internal Supply,
Non-Reversing
• A momentary input will start
the drive.
• A stop input to I/O Terminal 01
will stop the drive as specified
by P037 [Stop Mode].
DIP Switch
SNK/SRC = SRC
Parameters
P036 [Start Source] = 1 “3-Wire”
P037 [Stop Mode] = 0 through 7
3 Wire Control
Sourcing (SRC),
Internal Supply,
Reversing
• A momentary input will start
the drive.
• A stop input to I/O Terminal 01
will stop the drive as specified
by P037 [Stop Mode].
• I/O Terminal 03 determines
direction.
DIP Switch
SNK/SRC = SRC
Parameters
P036 [Start Source] = 1 “3-Wire”
P037 [Stop Mode] = 0 through 7
A166 [Reverse Disable] = 0 “Rev Enabled”

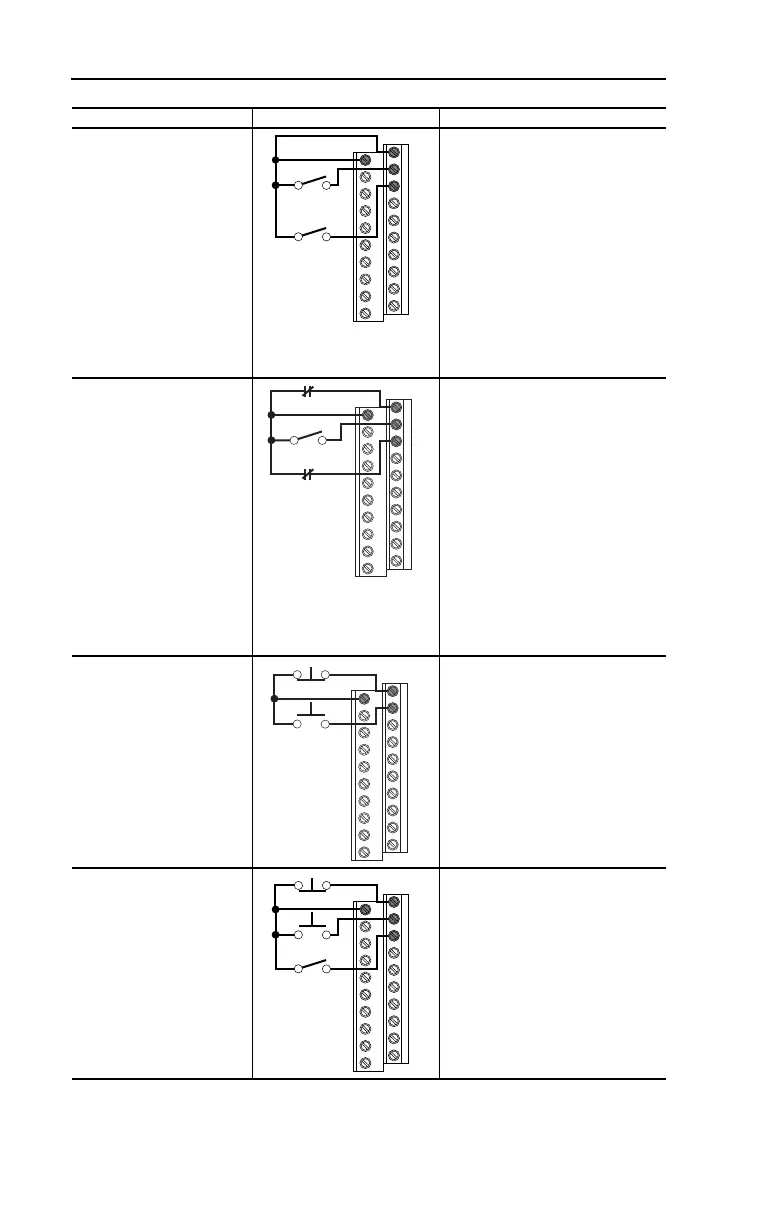

Input/Output Connection Example Required Settings
11
01
02
03
Stop-Run
Forward
Stop-Run
Reverse
Function Loss
Run FWD
SW Enable
11
01
02
03
11
01
02
Stop
Start
11
01
02
03
Stop
Start
Direction
To Next Page
