Ametek Sorensen XG - Analog Programming (APG) Connector J1

Analog Programming (APG) and Isolated Analog Programming (ISOL)
M370430-01 Rev B 4-5
4
Analog Programming (APG) Connector J1
The APG connector is an 18-pin connector. See Figure 4-1.
The APG connector provides access to the following functions:
Sense control
Analog programming and monitoring.
Jumper Jumper

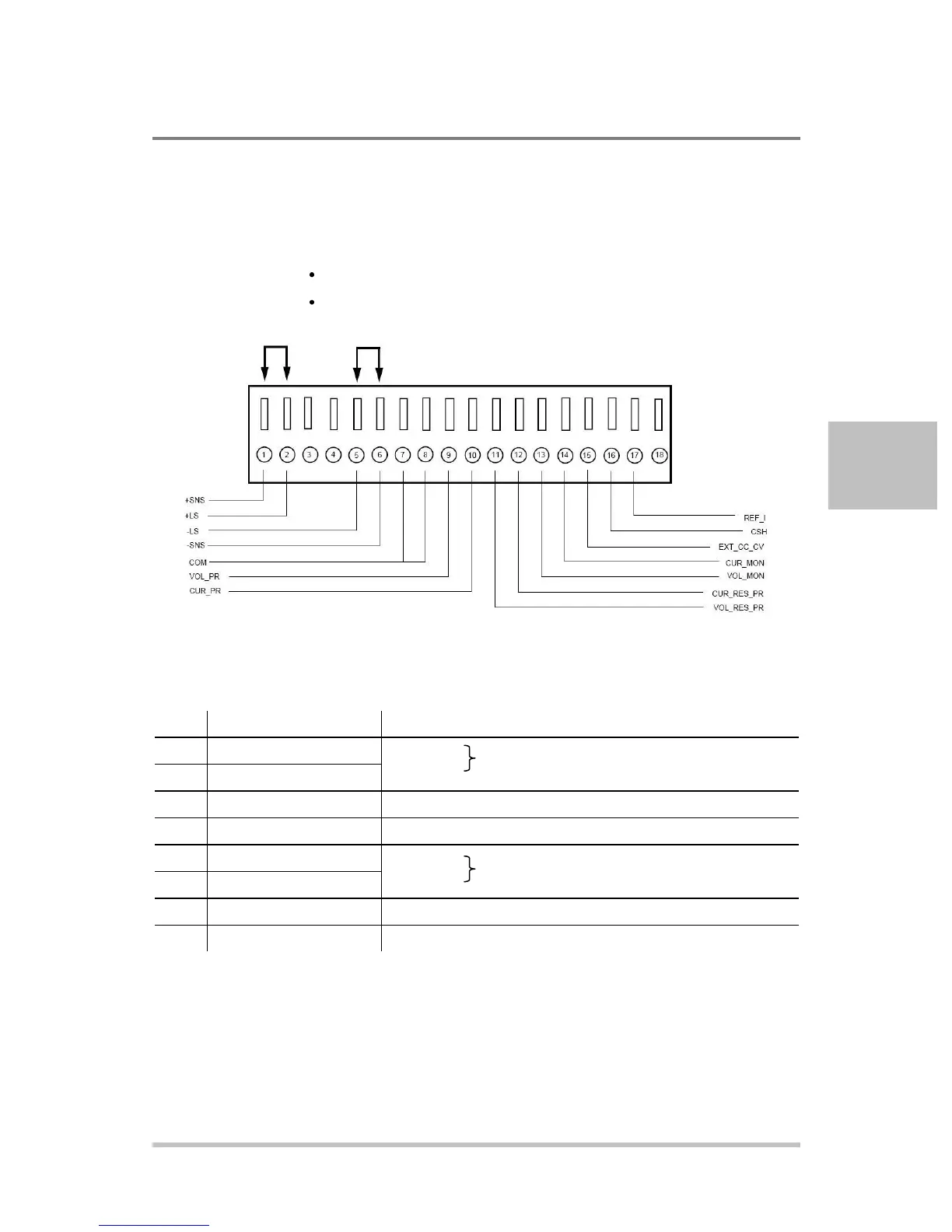

Figure 4-1 APG Connector Terminals
Table 4-3 APG Pins and Functions J1
Pin
Reference
Function
J1.1
+SNS Positive (+)
Sense
J1.2
+LS Positive (+)
Local Sense
J1.3
-NC
J1.4
-NC
J1.5
-LS Negative (-)
Local Sense
J1.6
-SNS Negative (-)
Sense
J1.7
COM Analog Common
Same as power supply negative sense (-SNS)
J1.8
COM Analog Common
Same as power supply negative sense (-SNS)
Jumper. Factory default condition.
Jumper. Factory default condition.
