Communications Options
6-4 M370430-01 Rev B

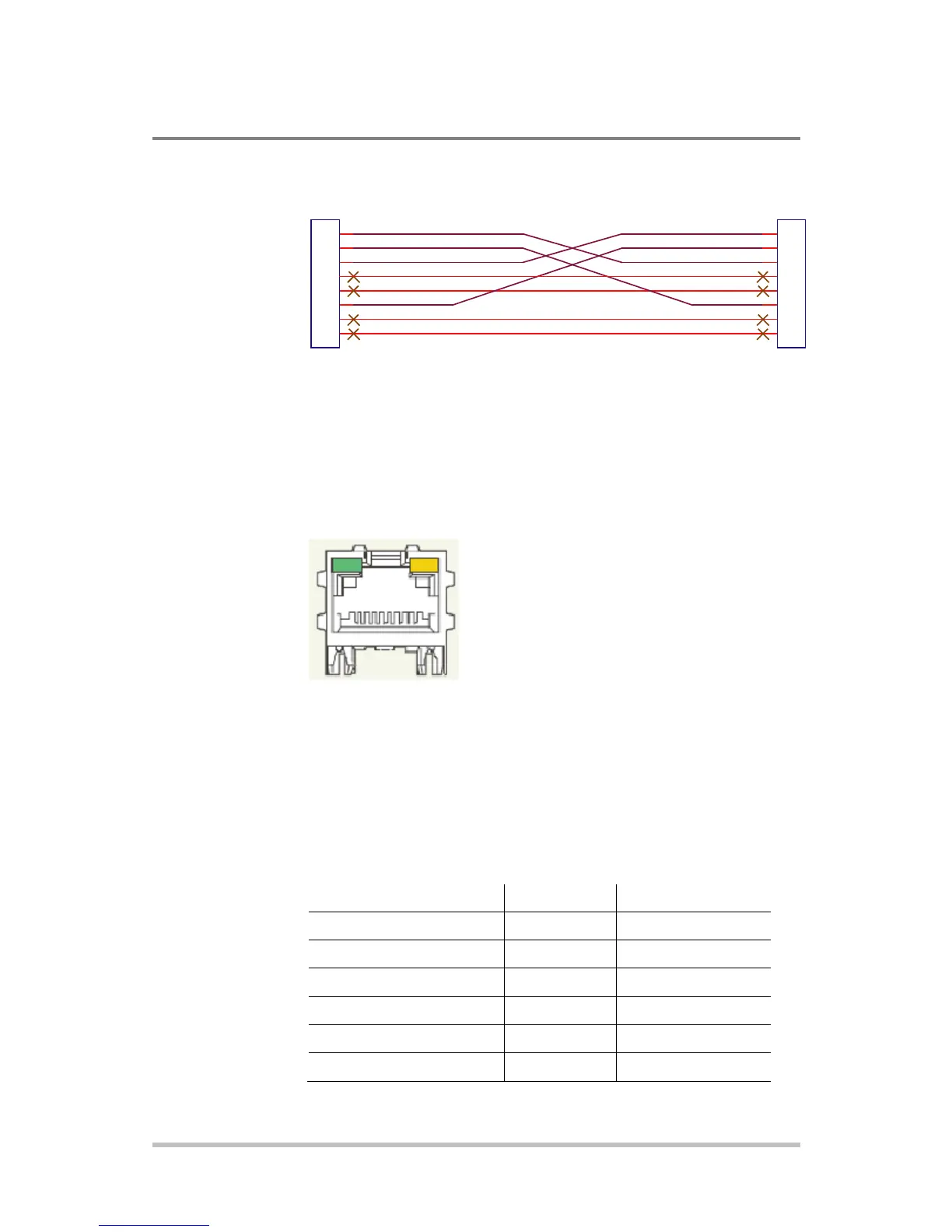

Figure 6-4 Scheme of ENET Cross-Cable
ENET Connector
The XPort® ENET connector is located on the rear panel of the power
supply. See Figure 6-5. At the top left corner is the link LED, and at the
top right corner of the connector is the activity LED. See Table 6-2 for a
description of their colors and what each indicates.
Figure 6-5 XPort® ENET Connector and LEDs
XPort™ LEDs
The device contains two bi-color LEDs built into the front of the
XPort™ connector. See Figure 6-5.
Table 6-2 Description of LEDs
Activity LED (Right side)
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
TX+
TX-
RX-
RX+
