Ametek Sorensen XG User Manual

Communications Options
M370430-01 Rev B 6-21
6
The Properties dialog box appears. See Figure 6-25.

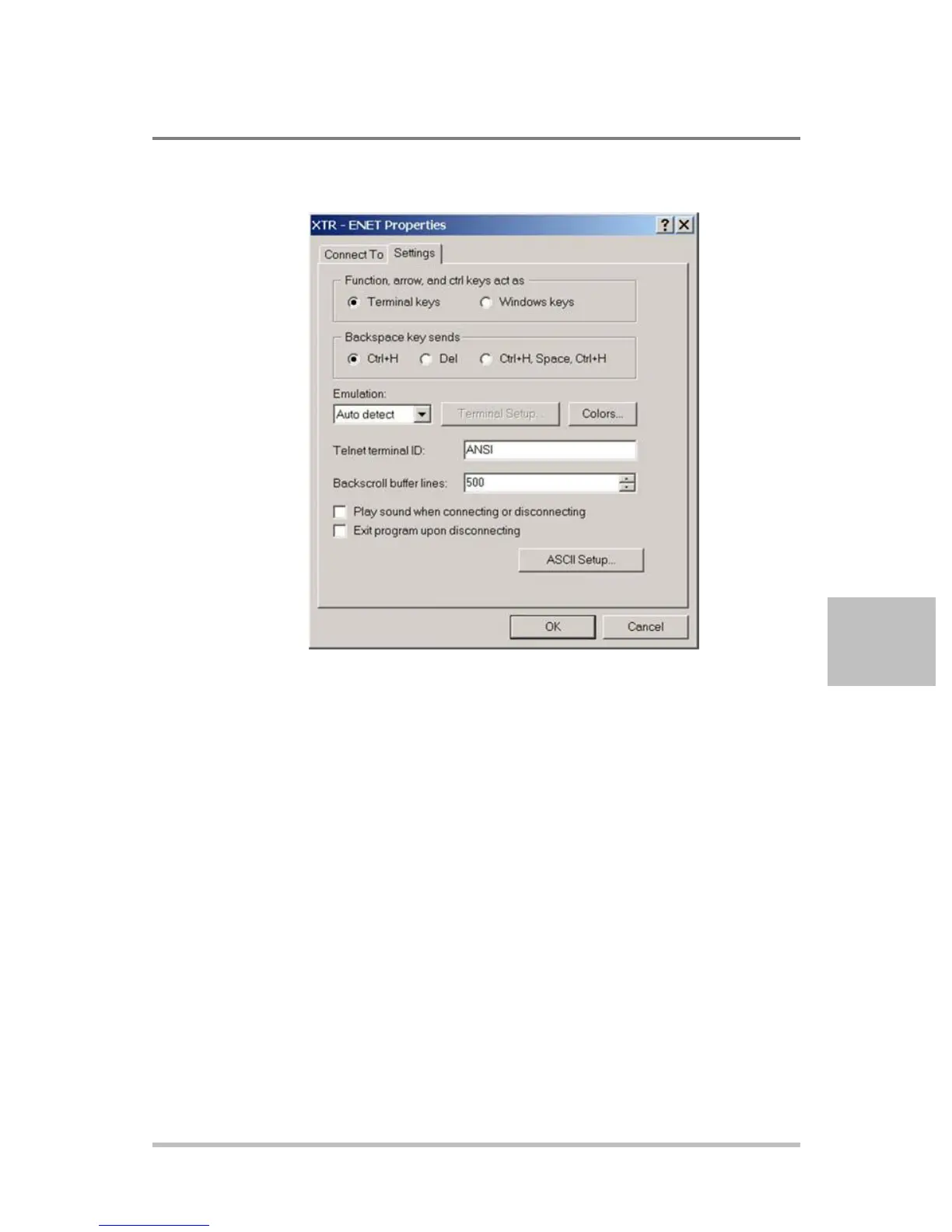

Figure 6-25 XTR-ENET Properties Dialog Box
3. Click the ASCII Setup button.
The ASCII Setup dialog box will appear as shown in Figure 6-26.
4. Verify that the ASCII Sending and ASCII Receiving boxes
are checked as shown in Figure 6-26.

Ametek Sorensen XG Specifications

General

Output Type	DC
Cooling	Forced air
Control Interface	Analog
Ripple Voltage	10 mVrms / 50 mVpp typical
Operating Temperature	0°C to +50°C
Protections	OVP, OCP, OTP
Output Voltage Range	0-5V to 0-600V (depending on model)
Input Frequency	47-63 Hz
