Installation
M370430-01 Rev B 2-9
2

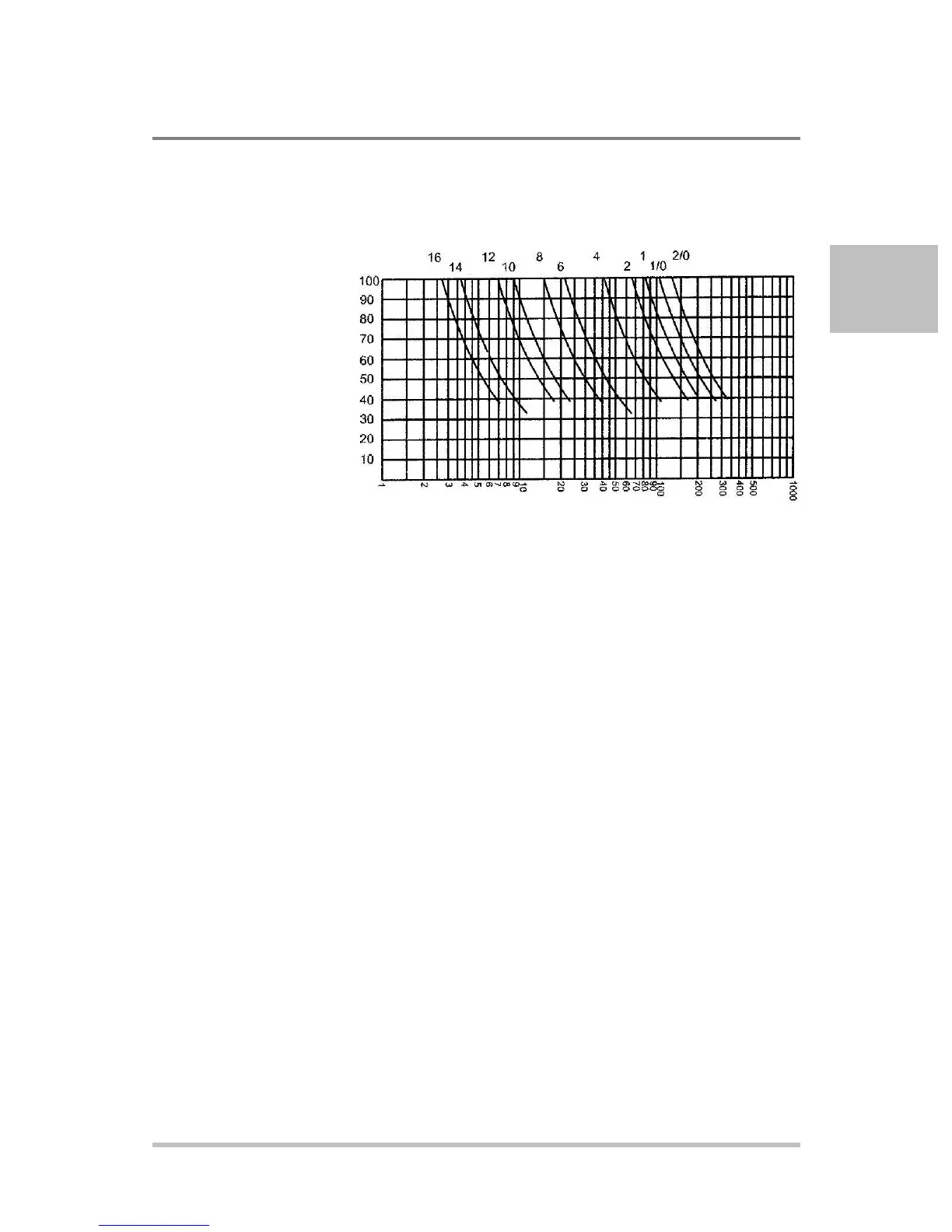

Maximum Load Wiring Length For Operation With Sense Lines
WIRE LENGTH (FEET)
WIRE GAUGE (AWG)
LOAD CURRENT (AMPS)
Figure 2-2 Maximum Load Wire Length for 1 V Line Drop
Noise and Impedance Effects
To minimize noise pickup or radiation, use shielded twisted pair wiring
of the shortest possible length for load sense wires. Connect the shield to
the power supply chassis. Where shielding is impossible or impractical,
simply twisting the wires together will offer some noise immunity.
