Ametek Sorensen XG - Standard Scpi Register Structure; Egister M Odel

Remote Operation
5-38 M370430-01 Rev B
Standard SCPI Register Structure
All registers except the SERS and Status registers will have the
following structure which control how they report status information. In
all subsequent figures that have SCPI registers, this structure will be
condensed down into a single block to simplify the figures. The
simplified block will show a 16-bit register and the summary bit. See
Figure 5-21 for details on the structure used for each standard SCPI
register.

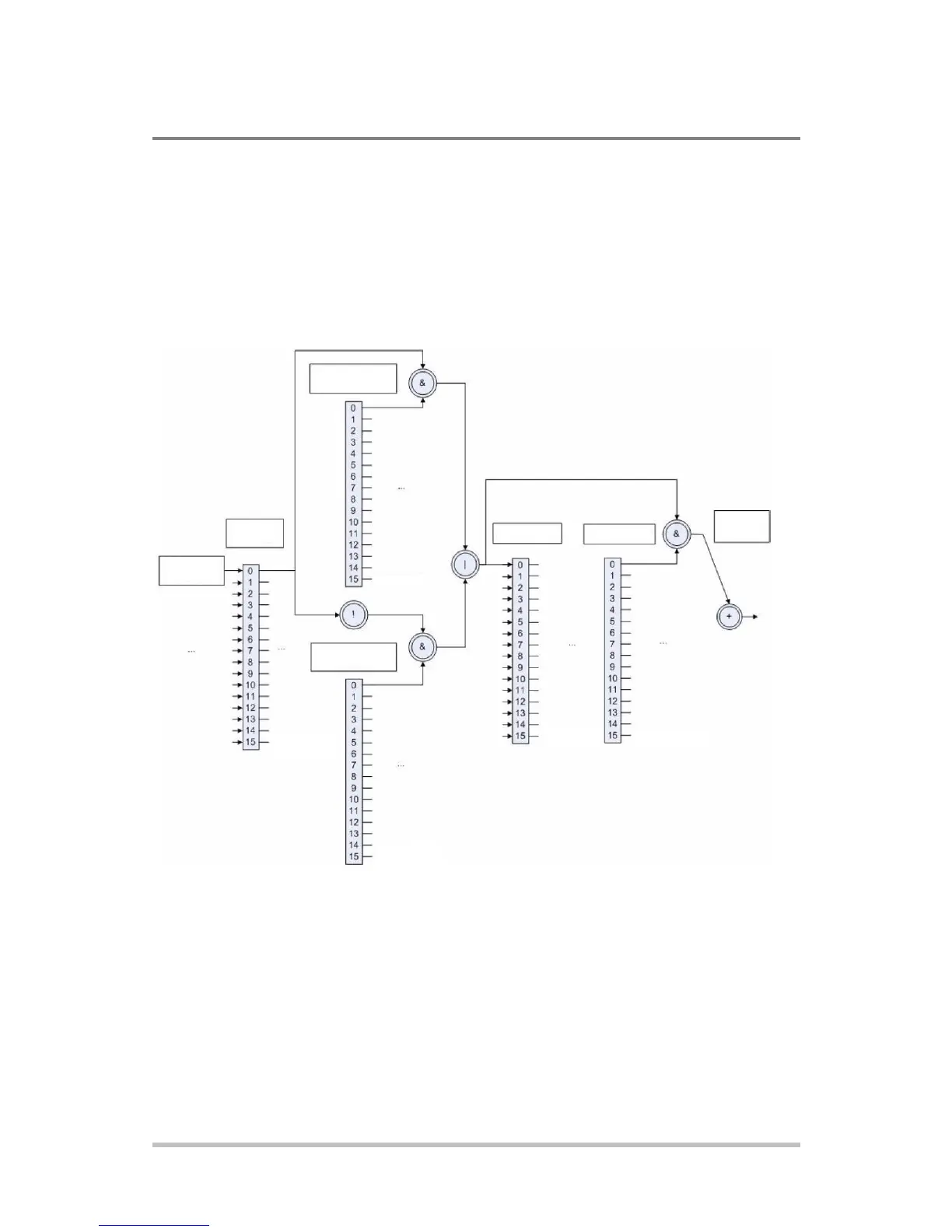

Figure 5-21 SCPI Register Model
Positive
Transition Mask
Condition
Register
Condition
Source
Event
Register
Enable
Register
Summary
Bit
Negative
Transition Mask
Never Used
Never Used
Never Used
Never Used
