Remote Operation
5-6 M370430-01 Rev B

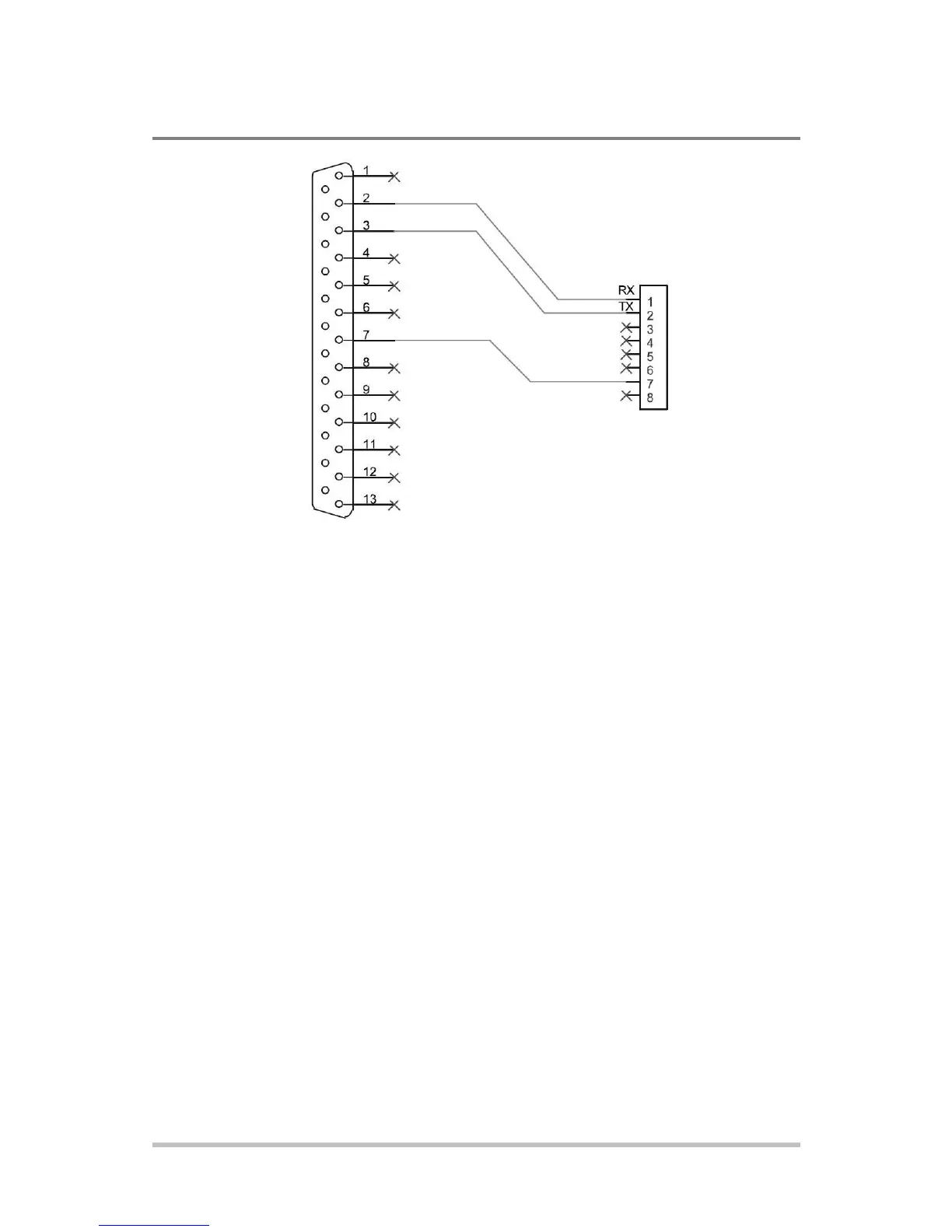

Figure 5-4 RS-232 Communication Cable with DB-25 Pinout
Completing the Setup
To complete the setup:
Configure the XG/XTR to use the 232 remote interface and set up
the terminal that will be used on the connected PC.
See the sections entitled”Selecting the Appropriate
Communication Port” on page 5-24 and “Terminal Configuration”
on page 5-21 for more details.
