112 ARR1575

557D005

557D006

557D007

557D008

557D009

6 Cab and platform

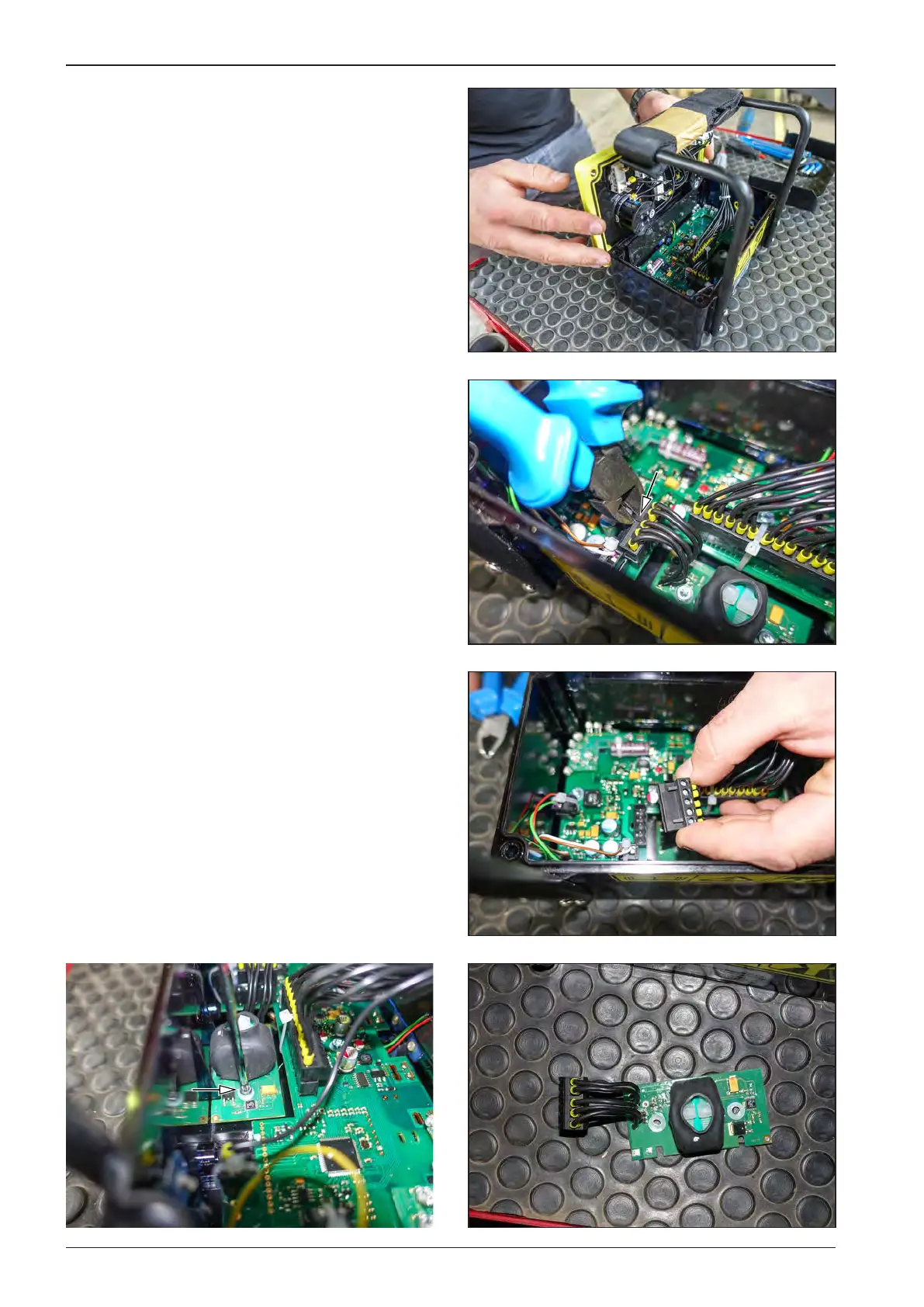

Open the top of the remote control.

Remove the connector fastening strip.

Disconnect the connector.

Remove the battery.
