5 Frame

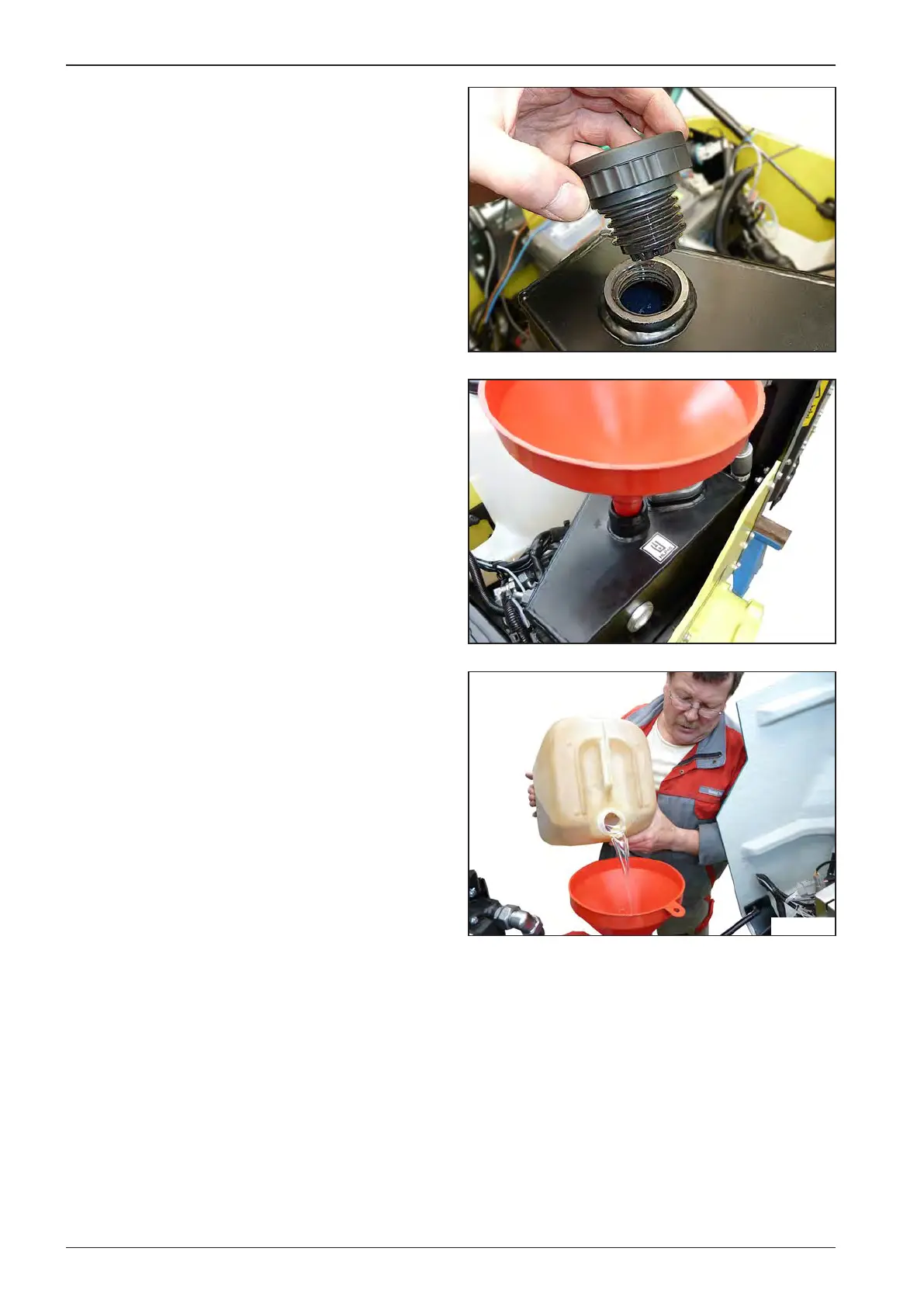

5.6.7 Hydraulic tank lling

Fill the hydraulic oil tank (approximately 16 l).

5.6.6 Ventilation lter replacement

Remove the ventilation lter and replace it with anew one.
