274 ARR1575

557D643

557D644

557D645

557D646

16 Optional equipment

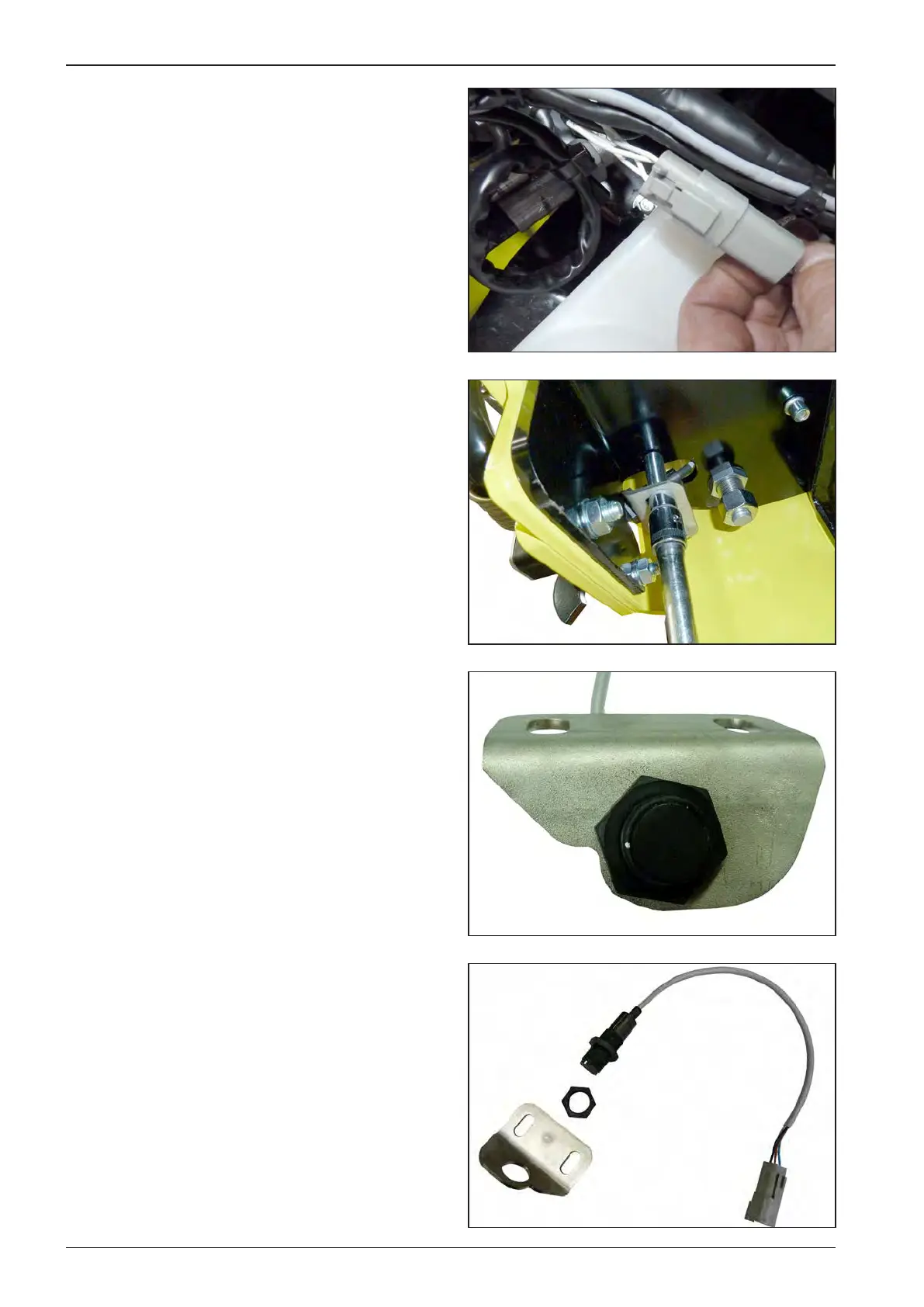

16.2.2 Sensor replacement and adjustment

Disconnect the sensor cable connectors.

Remove the sensor holder under the chassis.

Remove the old (defective) sensor from the holder.
