WORKSHOP MANUAL

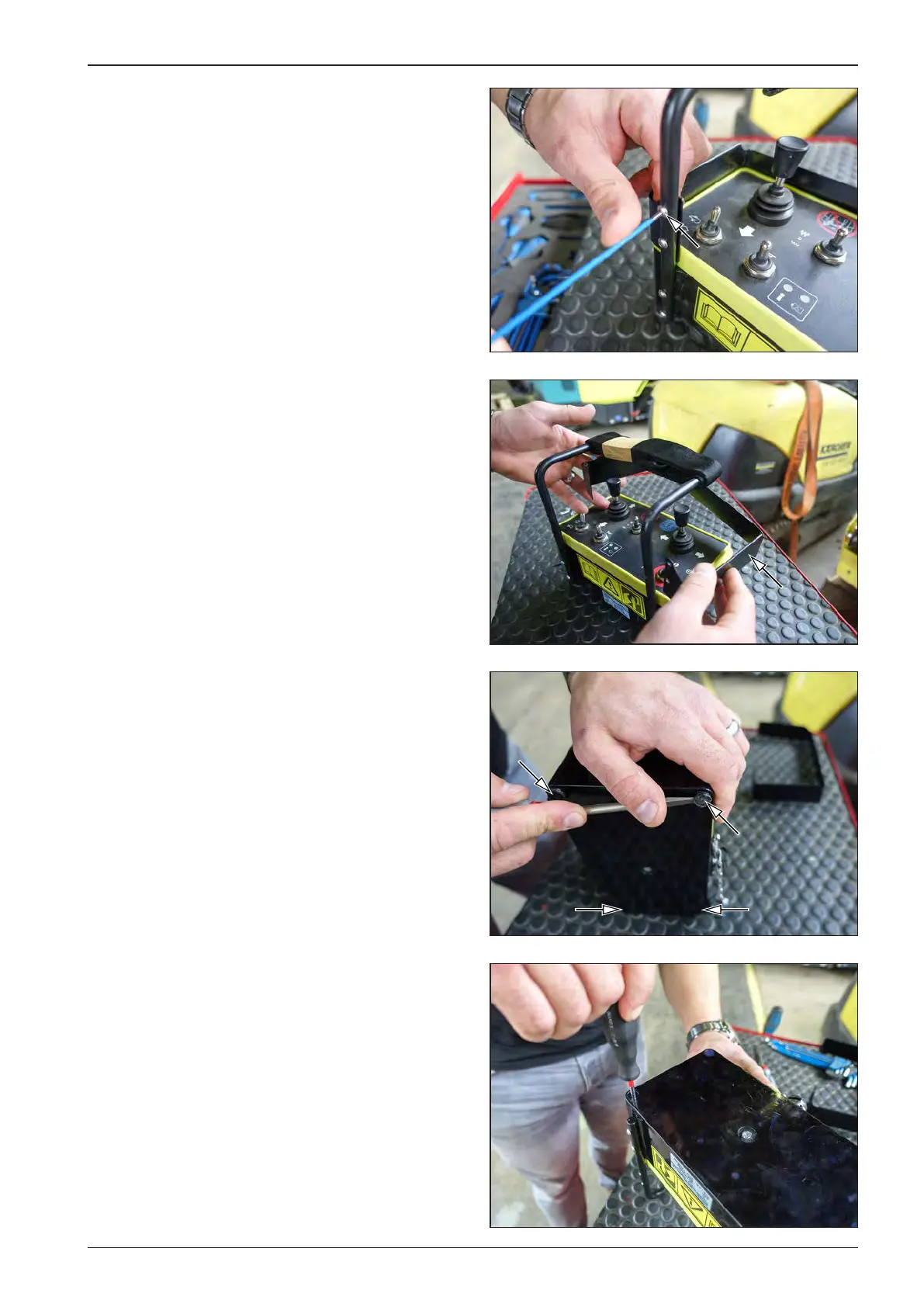

6.4.1 Replacement of the remote control

battery

Removal

Remove the protective cover.

Remove the rubber gaskets.

Remove the screws.
