66 ARR1575

557D563

557D564

557D565

557D566

5 Frame

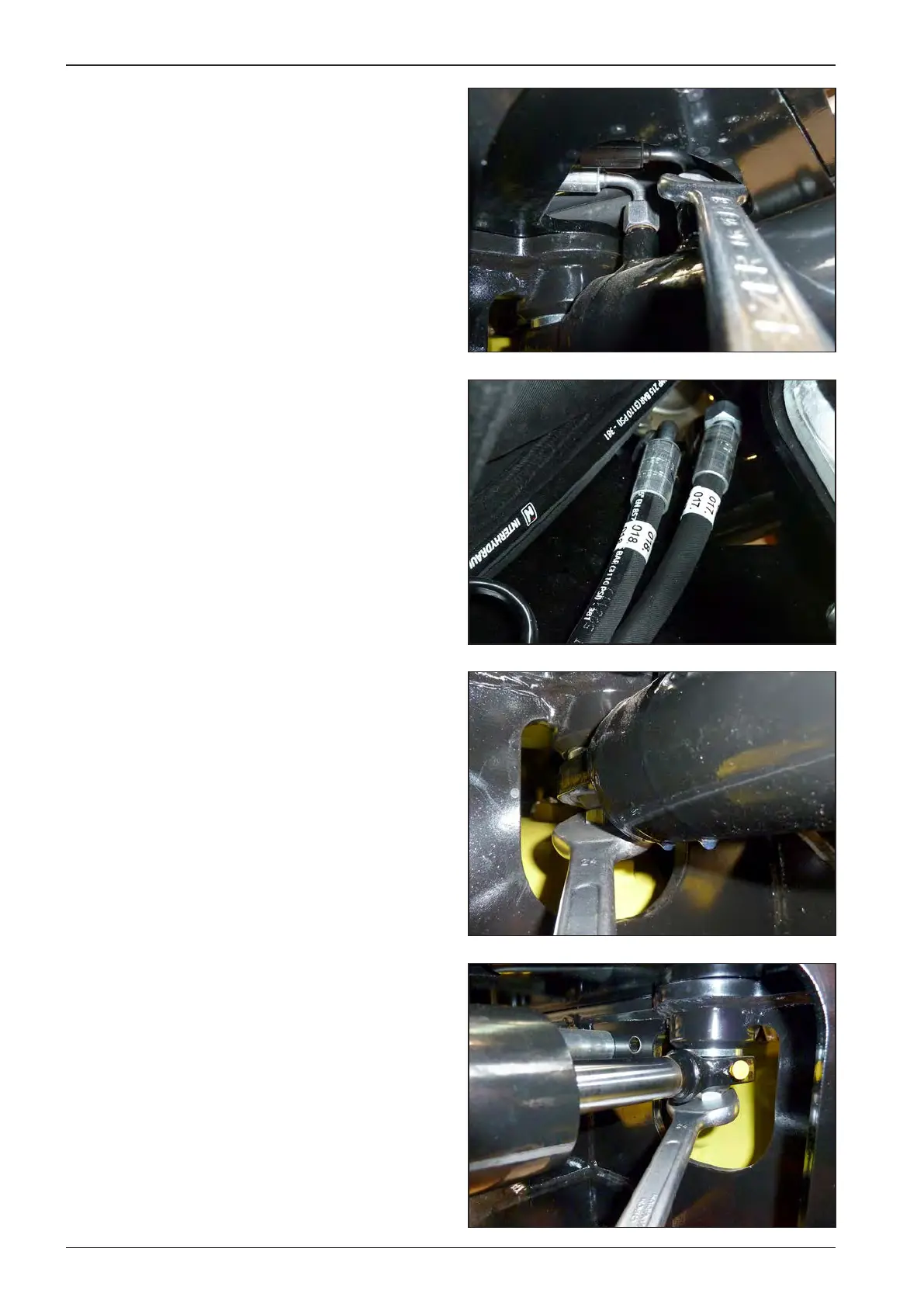

5.4.9 Replacement of the steering piston

Removal

Remove hydraulic hoses 017 and 018 from the hydraulic cylin-

der.

Remove the steering piston nuts.
