176 ARR1575

557D401

557D402

557D403

557D404

7 Front drum

7.4.6 Replacement of the vibration hydraulic

motor

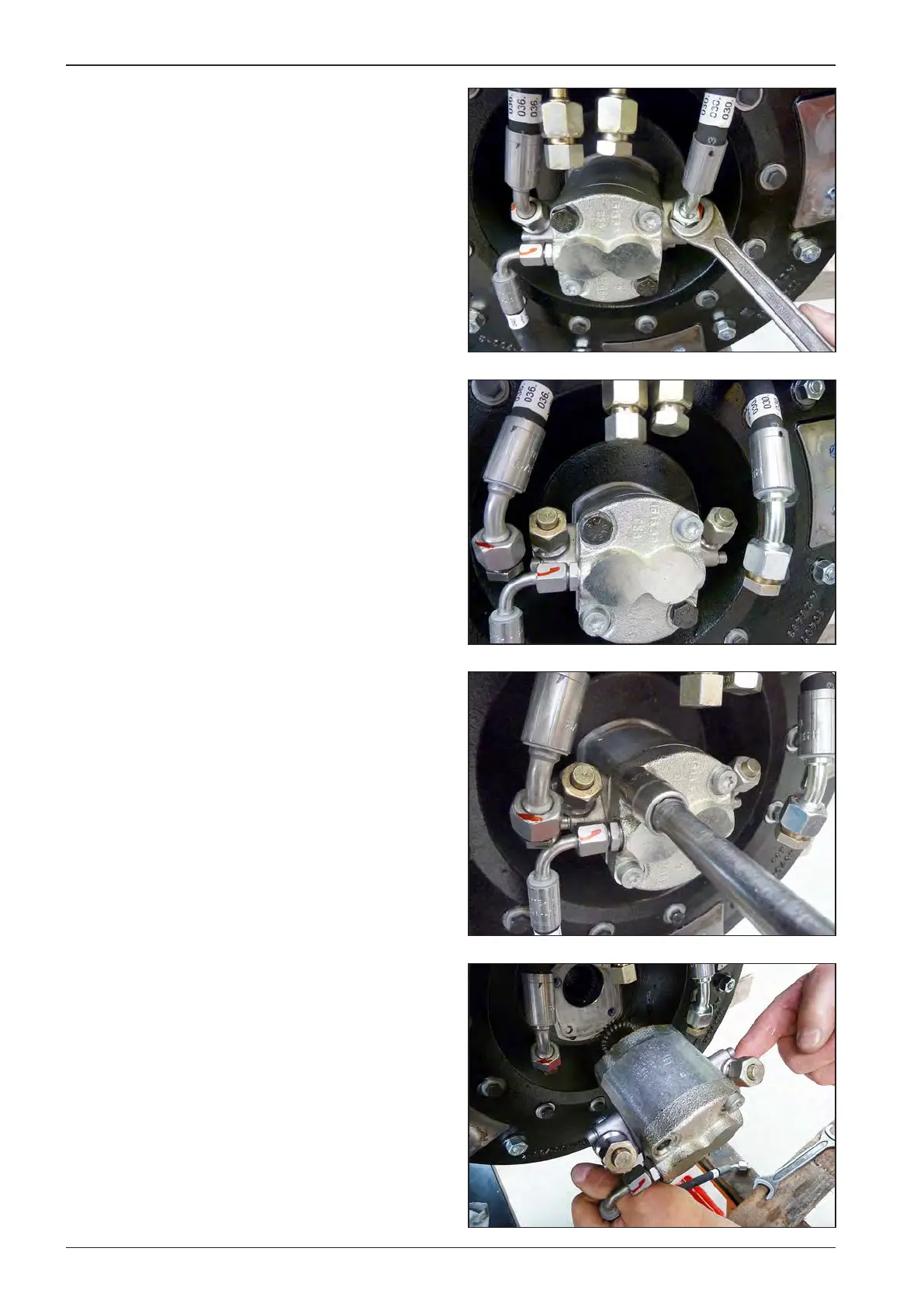

Removal

Remove the drum, travel hydraulic motor (Chapter 7.4.2).

Remove all hoses at the travel motor.

Close the screw union.

Remove the screws of the vibration hydraulic motor.

Remove the vibration hydraulic motor.
