177ARR1575

557D405

557D406

557D407

557D408

WORKSHOP MANUAL

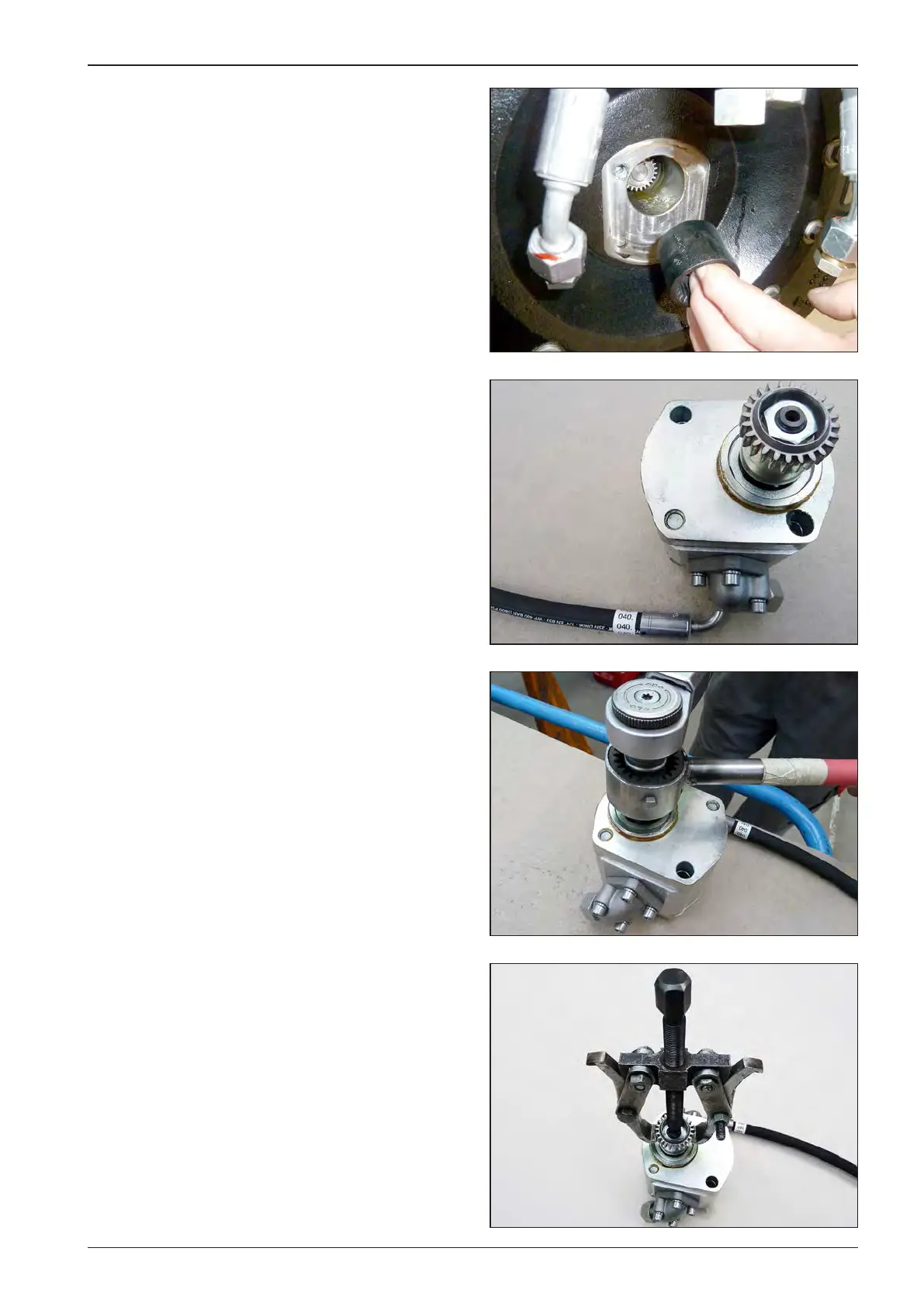

Remove the clutch.

In the case of adefective vibration hydraulic motor, remove the

screw union and pinion.

Remove the pinion nut.

Remove the pinion using apulling tool.
