7.2.3 Valve block hose

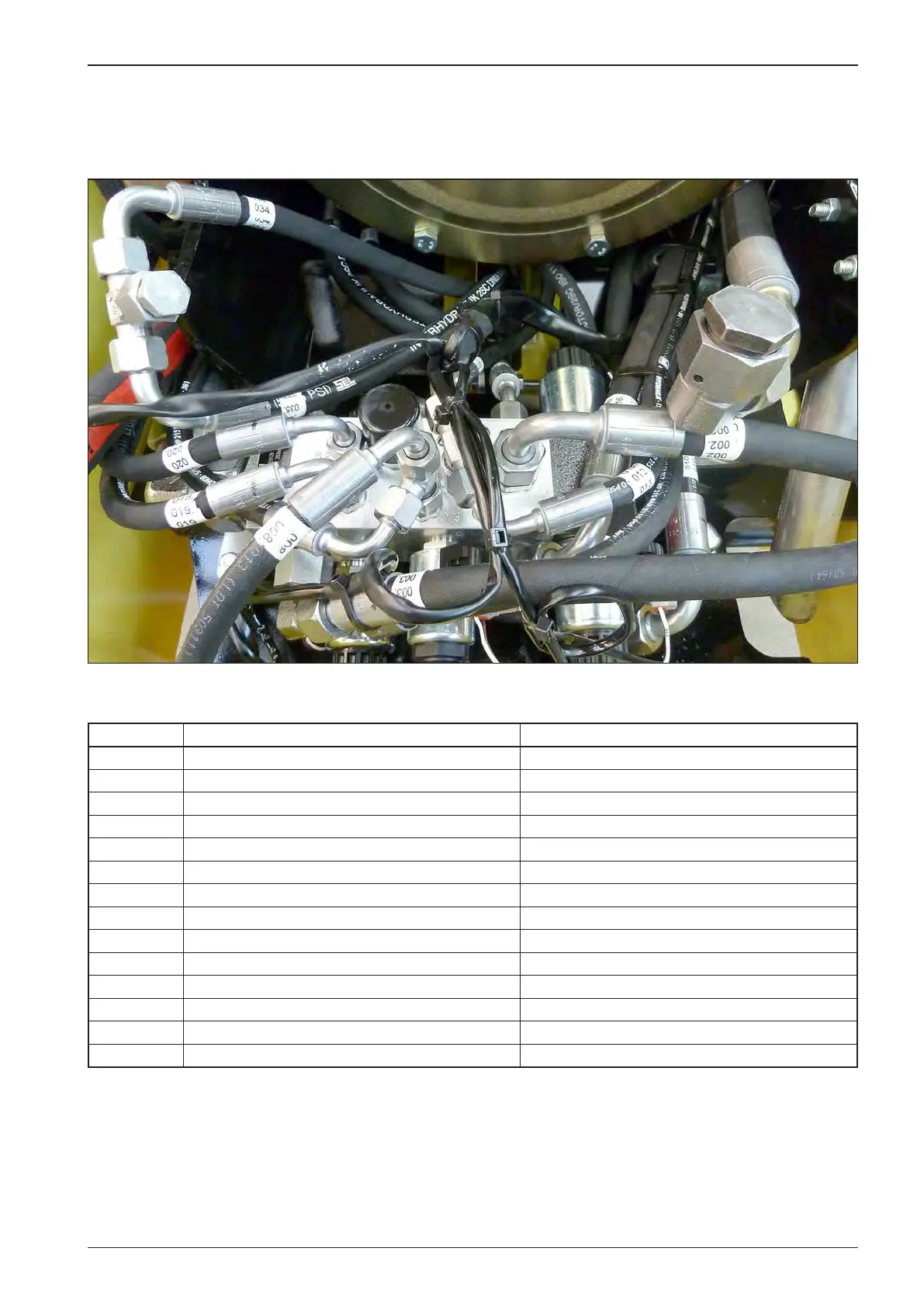

Valve block – top view
Valve block – solenoid valves
No. from to
2 Valve block P Vibration – steering pump pressure – L neck
3 Valve block T2 – angled neck Travel pump T1
4 Valve block T1 – angled neck Hydraulic oil cooler – angled neck
7 Valve block PBR – L neck Quantity divider T
8 Valve block PBR – L neck Travel pump G – L neck
13 Valve block BR – T neck Interface, rear
16 Valve block B1 Interface, rear – angled neck
17 Valve block B3 Left steering piston – cylinder
18 Valve block A3 Left steering piston – piston rod
19 Valve block A2 Right steering piston – cylinder
20 Valve block B2 Right steering piston – piston rod
30 Valve block A1 Vibration motor at the front, connection at the front
33 Valve block BR – T neck Travel motor brake, front left – L neck
37 Valve block T3 Leaked oil – travel motor, front left – L neck
