WORKSHOP MANUAL

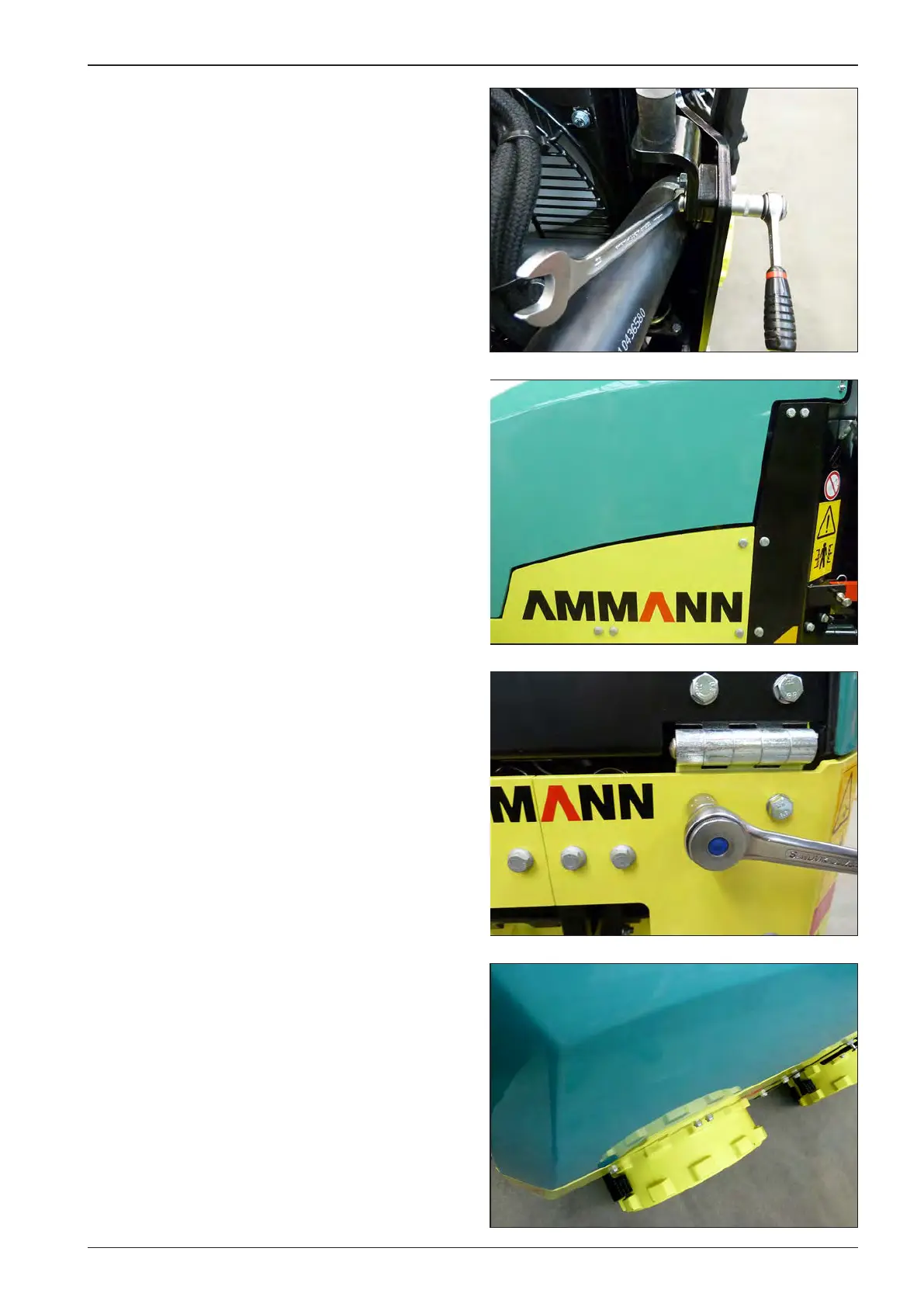

5.4.6.4 Adjustment of the rubber-metal
elements of the front bonnet stop
After installing the bonnet or replacing abonnet stop rubber-
metal element, adjust the distance between the bonnet and the
machine frame.
Loosen the rubber-metal element holder screws.
Move the holder to adjust the distance between the bonnet and
the machine frame.
Make sure the distance is even.
Loosen the bottom screws of the bonnet hinges.
Move the bonnet to adjust the distance between the bonnet
and the machine frame.
The bonnet and the chassis should be aligned.
Tighten the screws. The tightening torque is 50 Nm.
