WORKSHOP MANUAL
15.3.2 Chassis at the rear

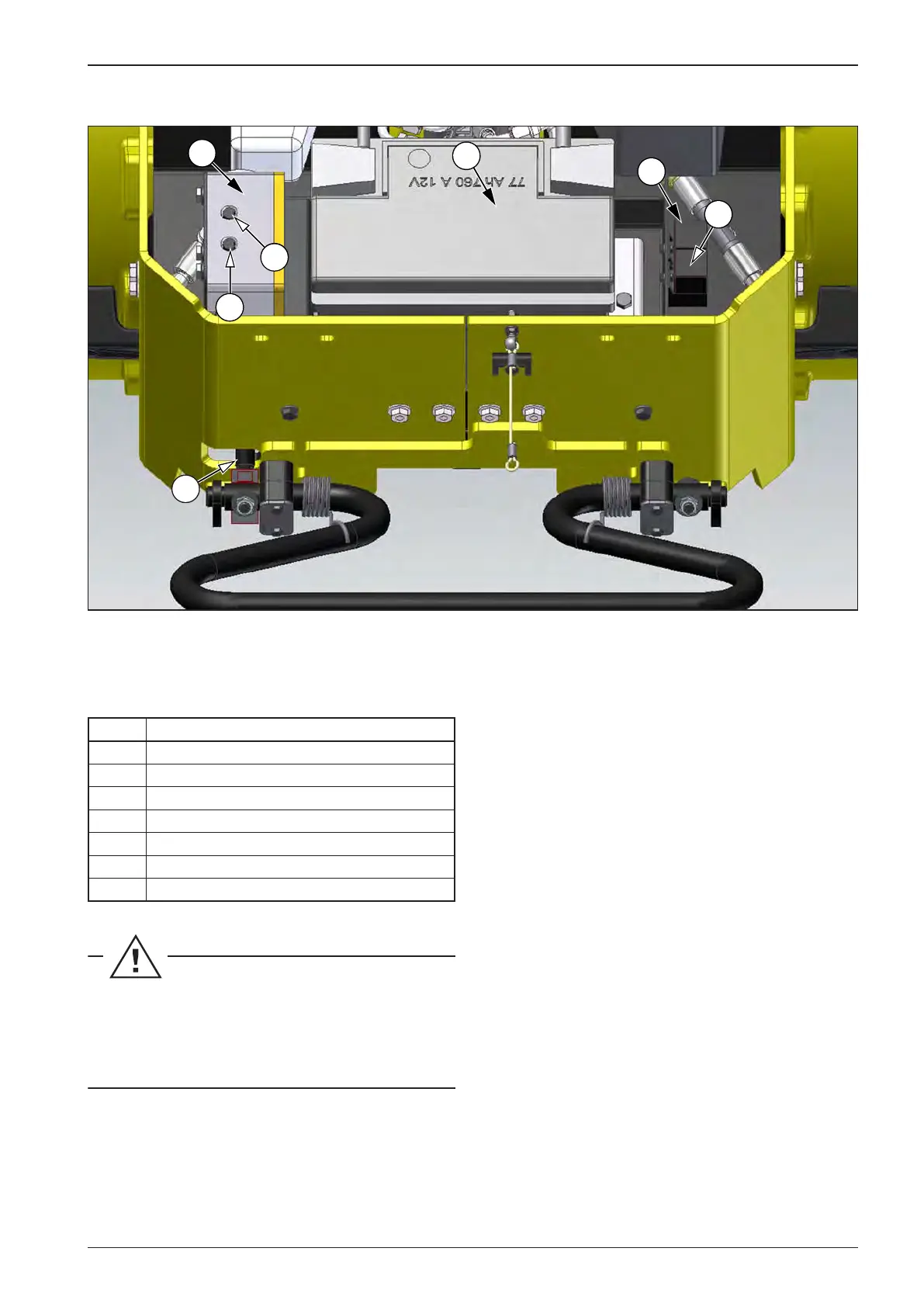

Relay, chassis at the rear
Relay functions, chassis at the rear
Functions
G2 Battery
K1 Relay, ignition
K7 Relay, hydraulic oil cooler
N1 Machine control unit
S24 Switch, sensor, safety bar (optional equipment)
X4 Infrared sensor at the front P1
X6 Infrared sensor at the rear P2
Machines without asafety bar do not have the S24 prox-
imity switch. The bridge retracts instead of the switch.
Infrared sensor connectors X4 and X6 are interchange-
able. This has no eect on the machine.
