140 ARR1575

557D320

557D321

557D319

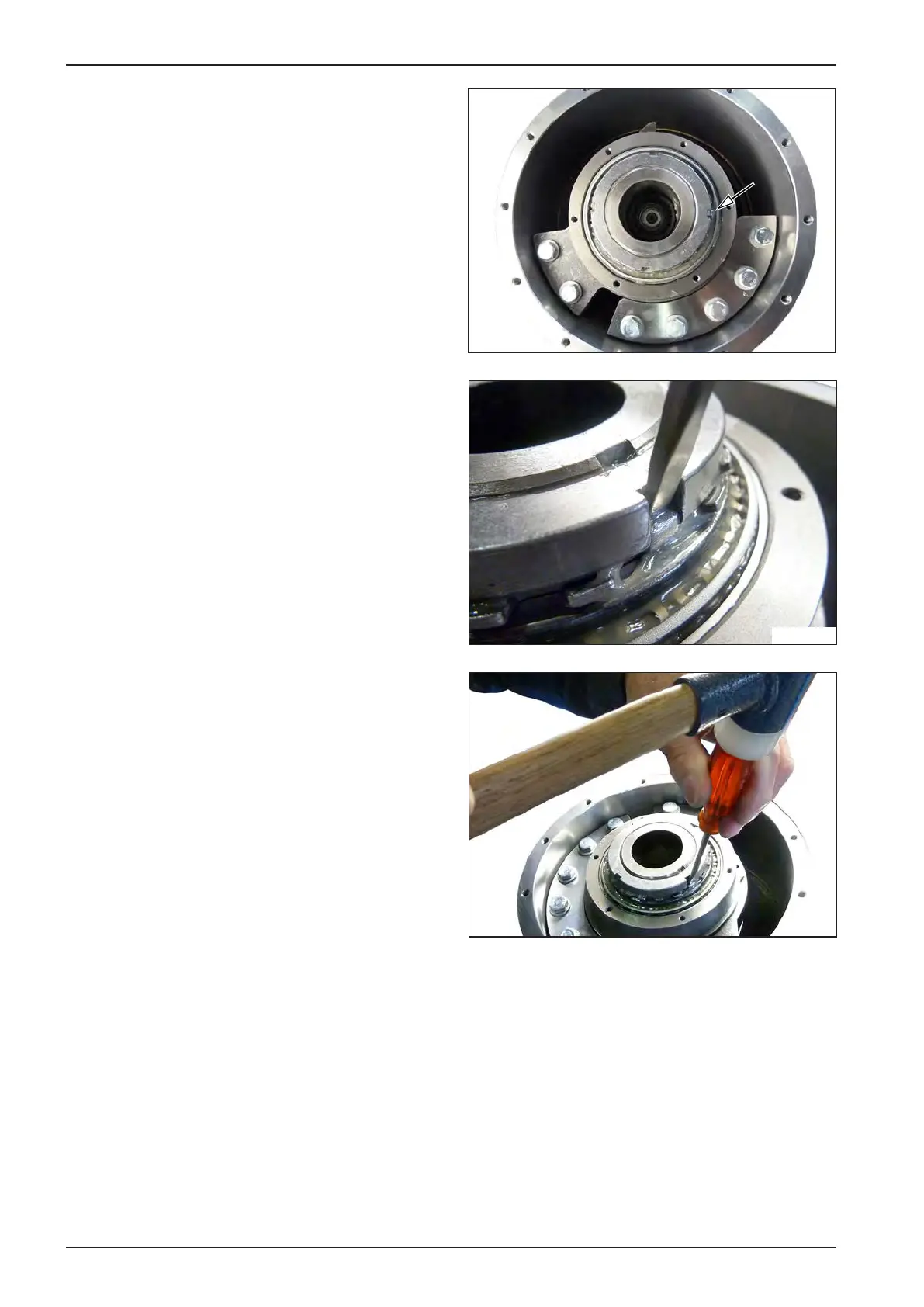

7 Front drum

Loosen the grooved nut lock.

Use asmall chisel or screwdriver.
