159ARR1575

557D358

557D359

557D360

557D361

WORKSHOP MANUAL

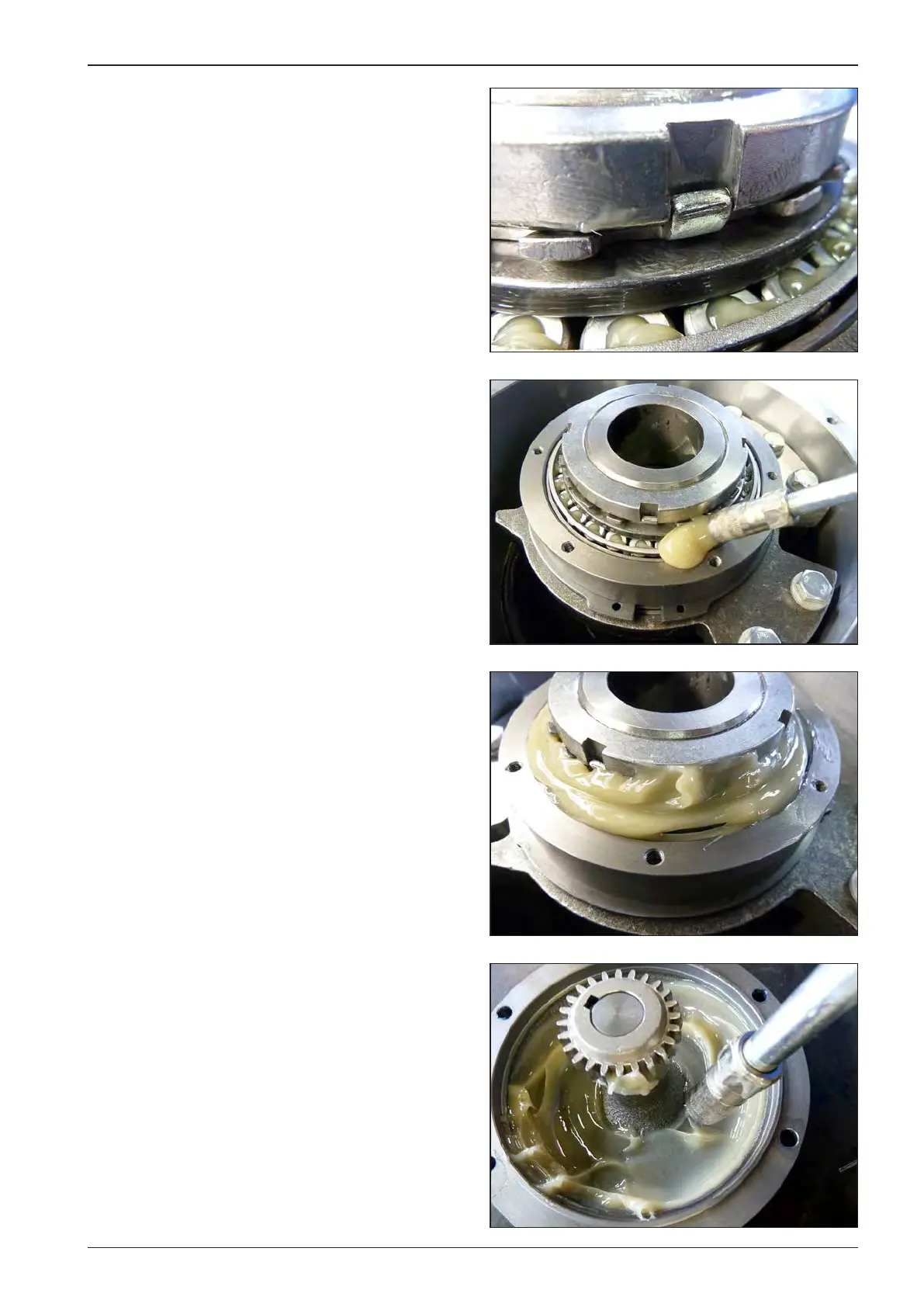

Grease the bearings.

Total amount of grease in the bearing housing:

100 g of liquid grease BLASER FOODGREASE SPM00
