Ammann ARR 1575 - Page 190

To Next Page

To Previous Page

188 ARR1575

557D022

557D023

557D025

557D024

8 Rear drum

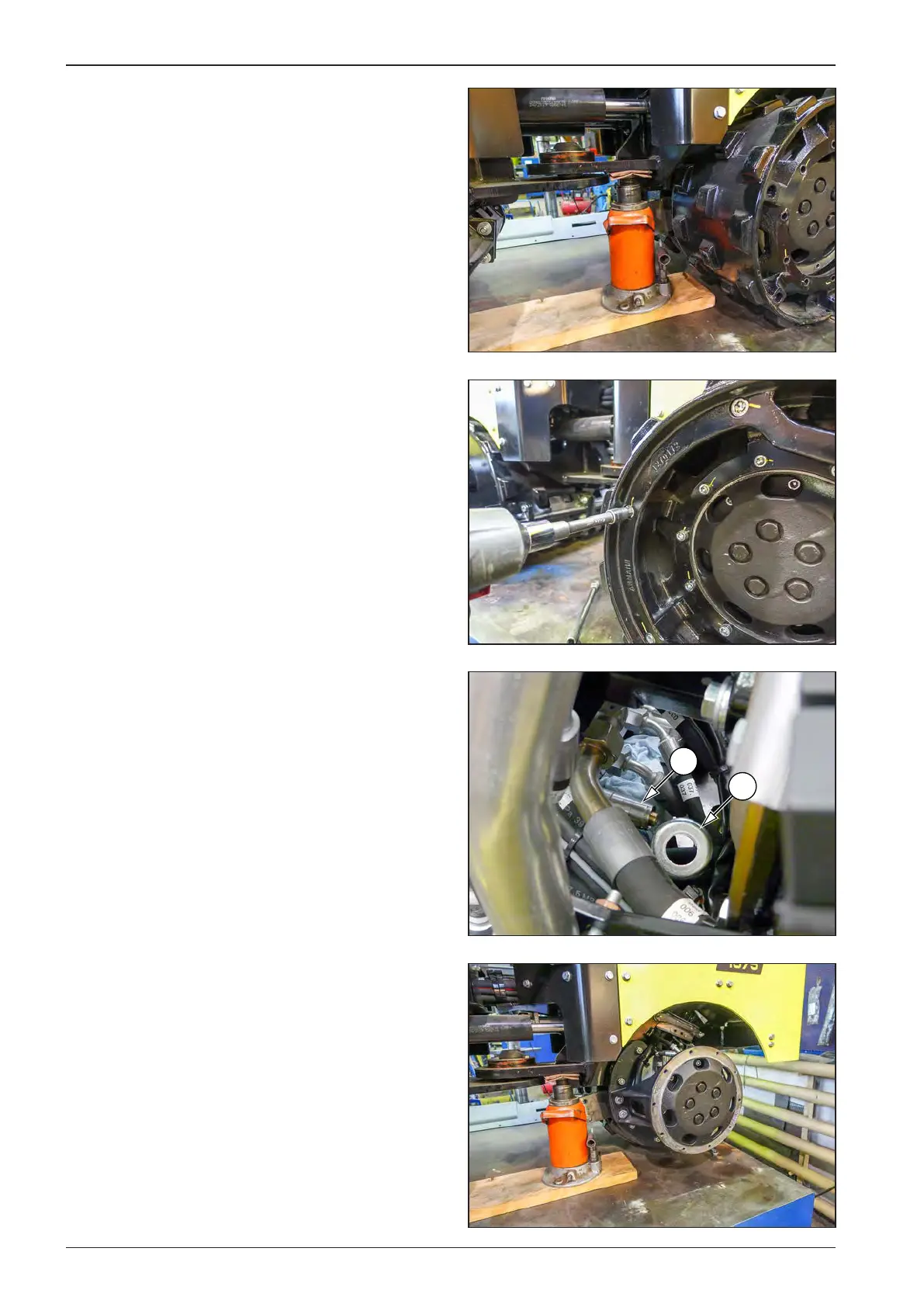

Support the left rear part of the frame with ajack.

Remove the extension of the left rear drum.

Remove the left rear drum.
