190 ARR1575

557D030

557D032

557D033

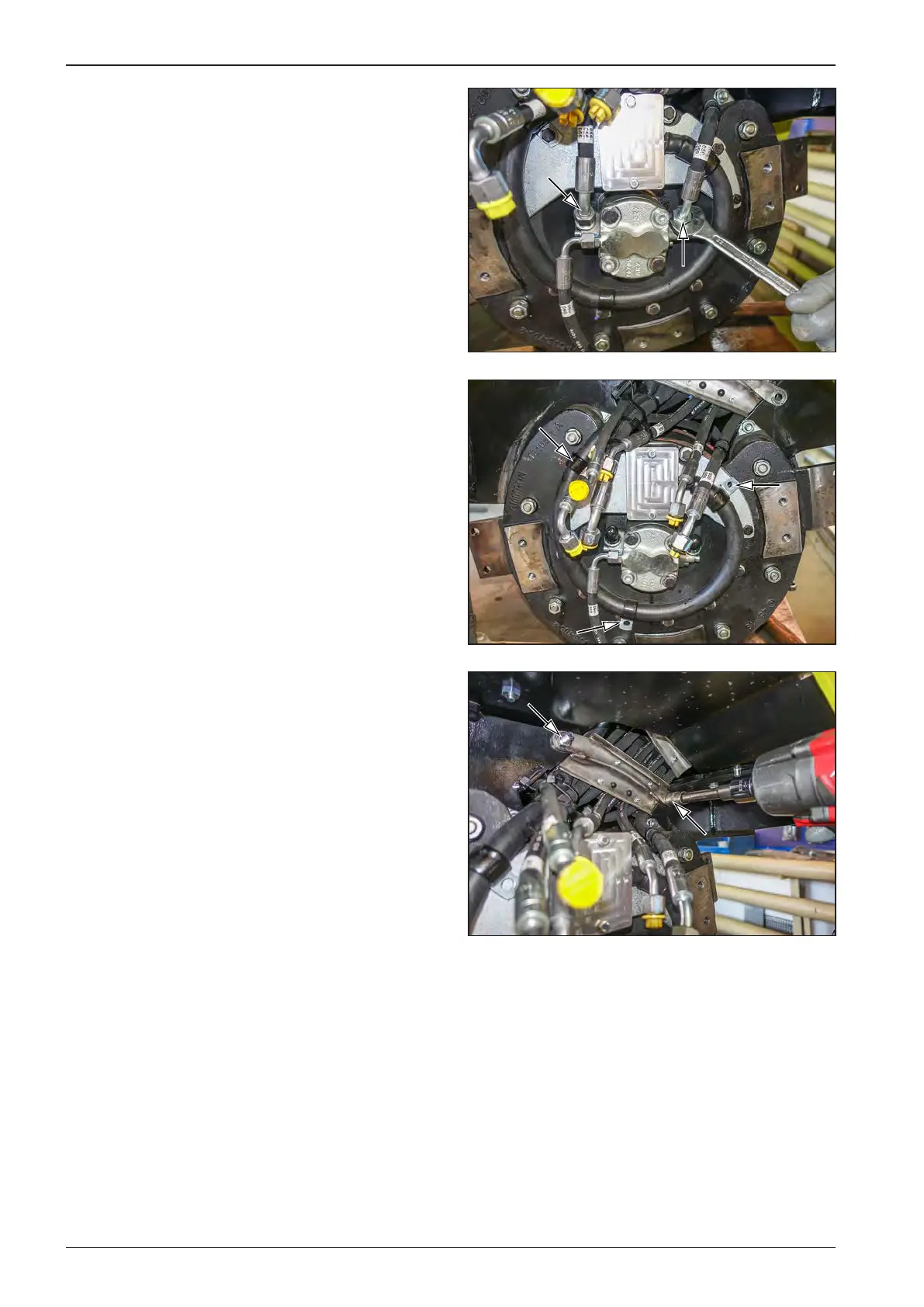

8 Rear drum

Remove the hoses from the vibration hydraulic motor.

Remove the sensor wiring clips.

Remove the hose holder.
