192 ARR1575

557D037

557W053

557D014

8 Rear drum

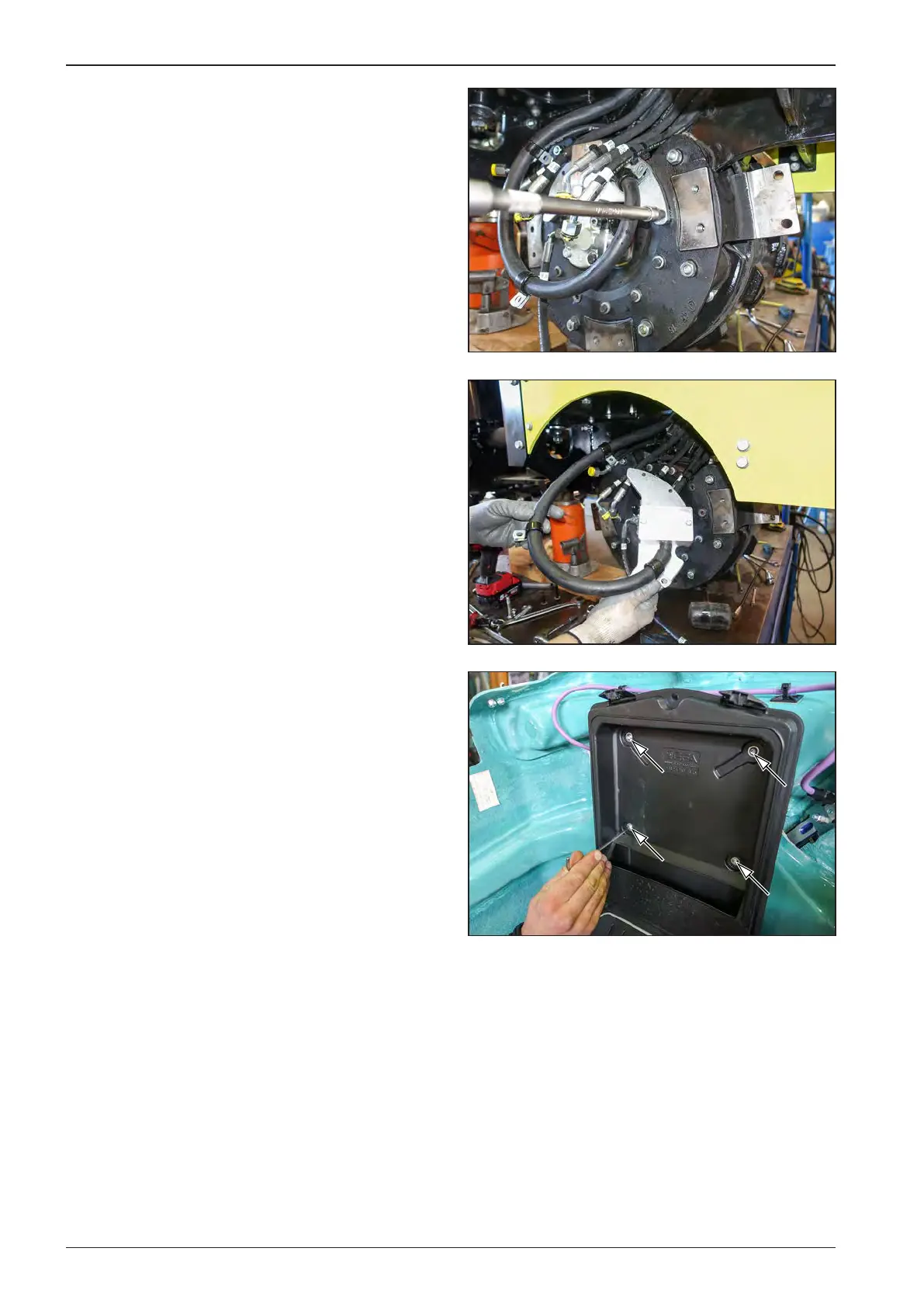

Remove the holder of the ACEecon sensor.

Remove the document compartment.
