Ammann ARR 1575 - Page 197

To Next Page

To Previous Page

195ARR1575

557D047

557D048

557D049

WORKSHOP MANUAL

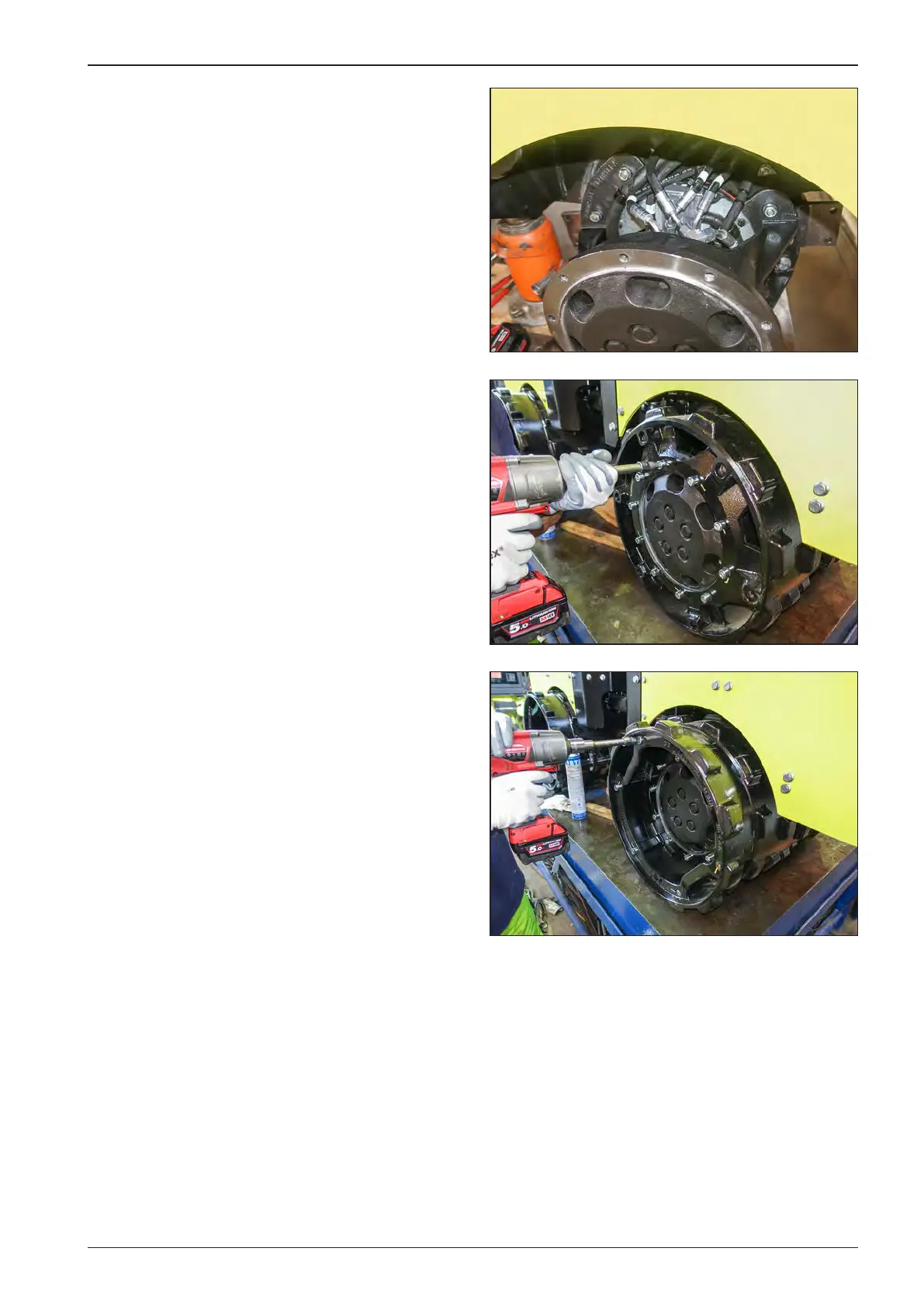

Attach the hydraulic hoses of the travel hydraulic motor.

Install the drum. Secure the screws with the Loxeal 83-54 ad-

hesive.

Install the drum extension. Secure the screws with the Loxeal

83-54 adhesive.
