Ammann ARR 1575 - Page 210

208 ARR1575
557D449
557D450
557D451
557D452
11 Travel

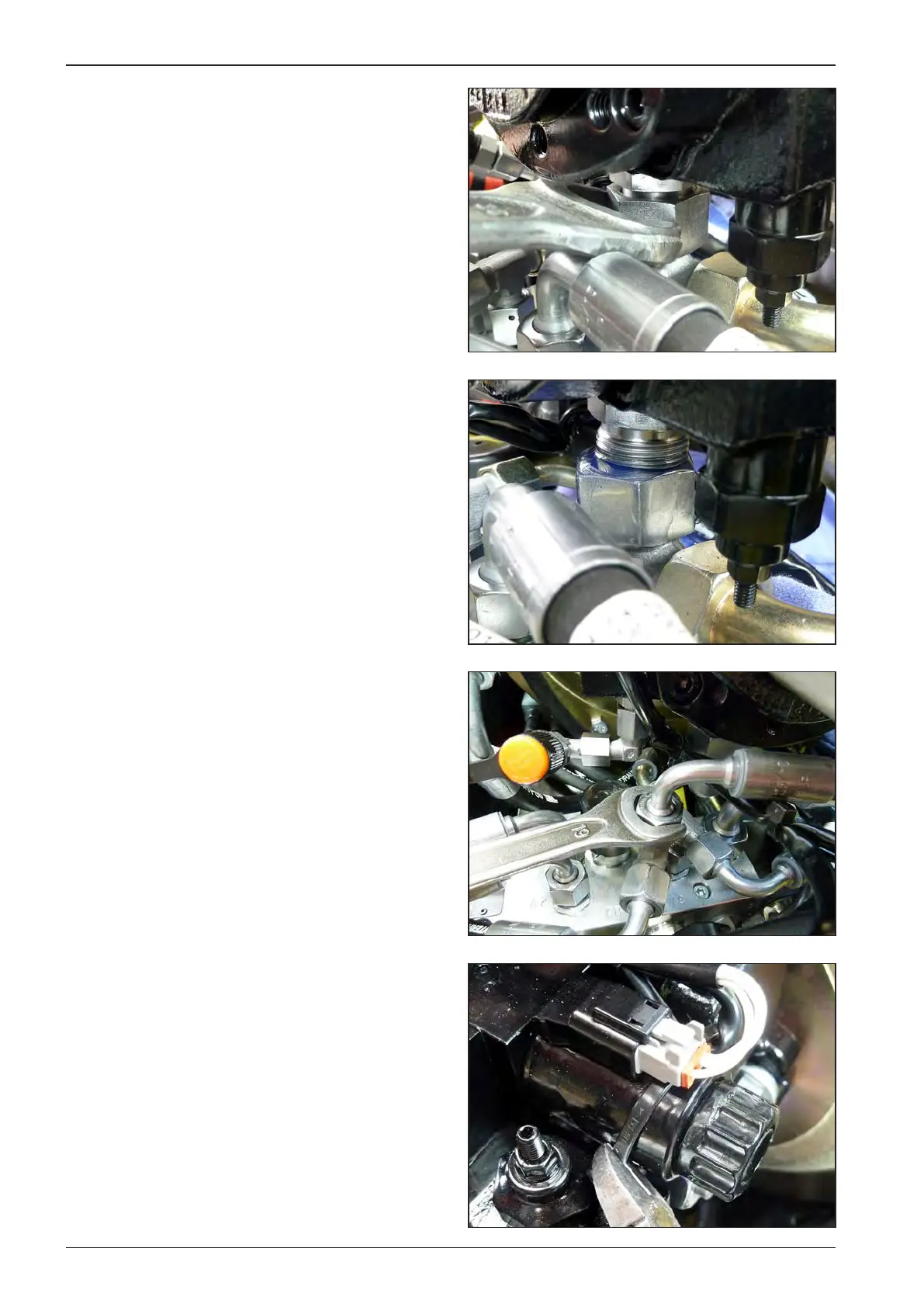

Remove the angled screw union of the suction line, travel pump.
The hydraulic oil will stop owing.
Remove the hydraulic hose of the supply pressure, PBR valve
block.
Close the screw union.
Remove the cable ties on both sides on the servo block.
