269ARR1575

557D626

557D627

557D628

557D629

WORKSHOP MANUAL

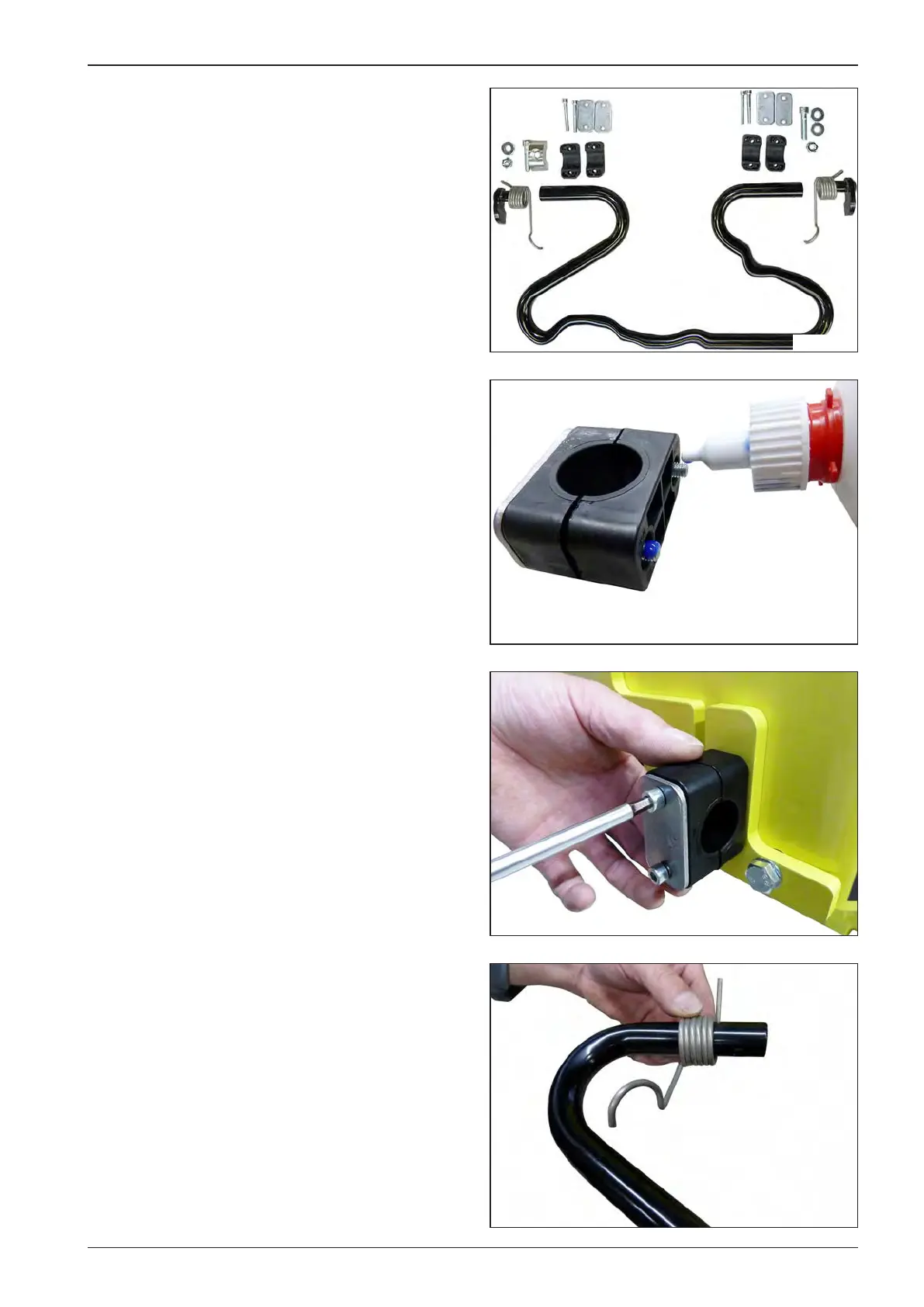

Check if the removed parts can be reused.

Apply blue adhesive on the clip body.

Attach the clip body on the chassis using the screws.

Move the spring on the right and left to the safety bar.
