Ammann ARR 1575 - Page 278

276 ARR1575
557D650
557D651
557D644
557D652
16 Optional equipment

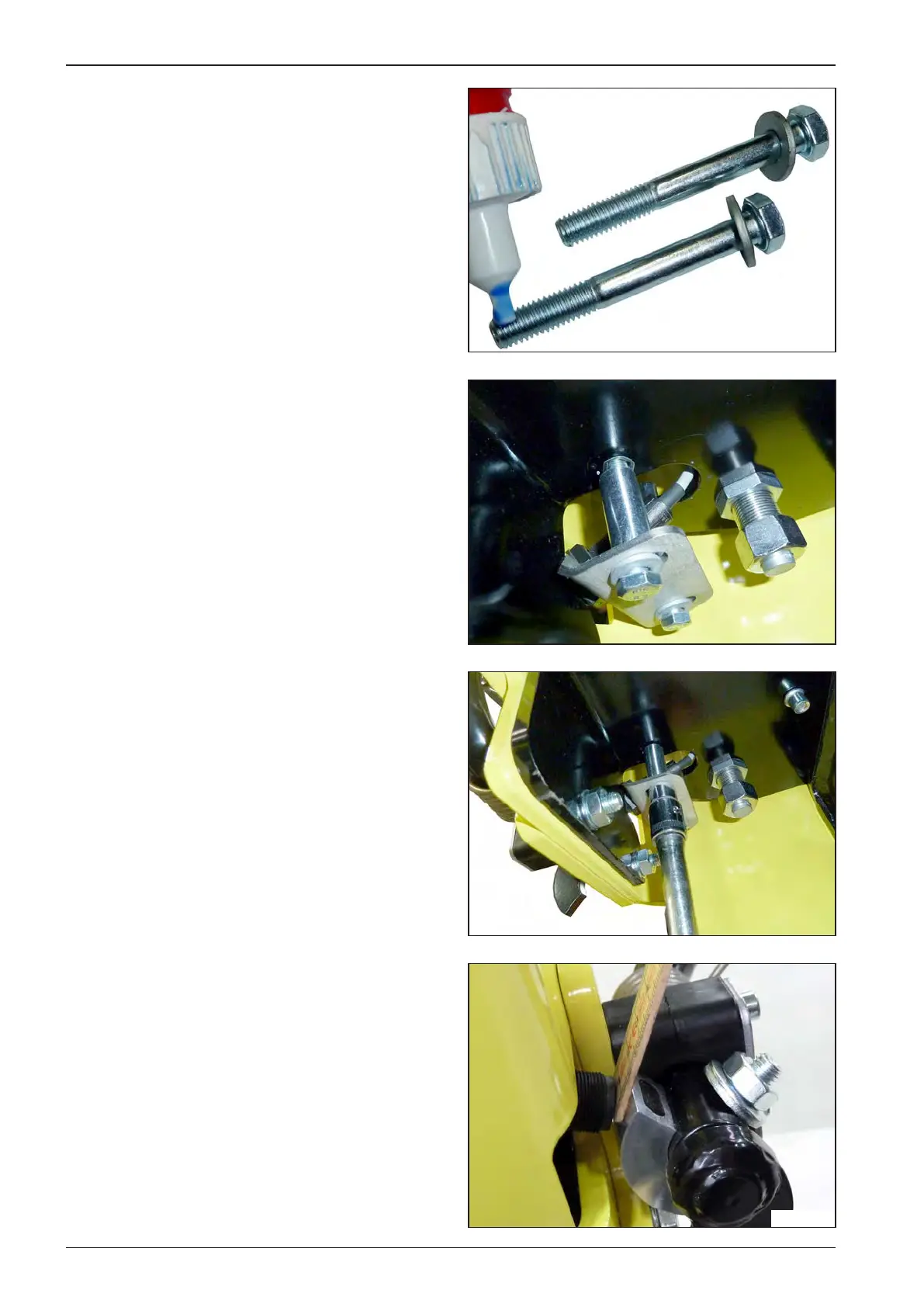

Apply blue adhesive on the screws.
Put the sensor cable through the hole in the chassis.
Mount the sensor holder.
Tighten the screws slightly.
Set the distance (approx. 3 mm) between the sensor head and
the magnet.
Move the sensor holder appropriately.
