18 Troubleshooting

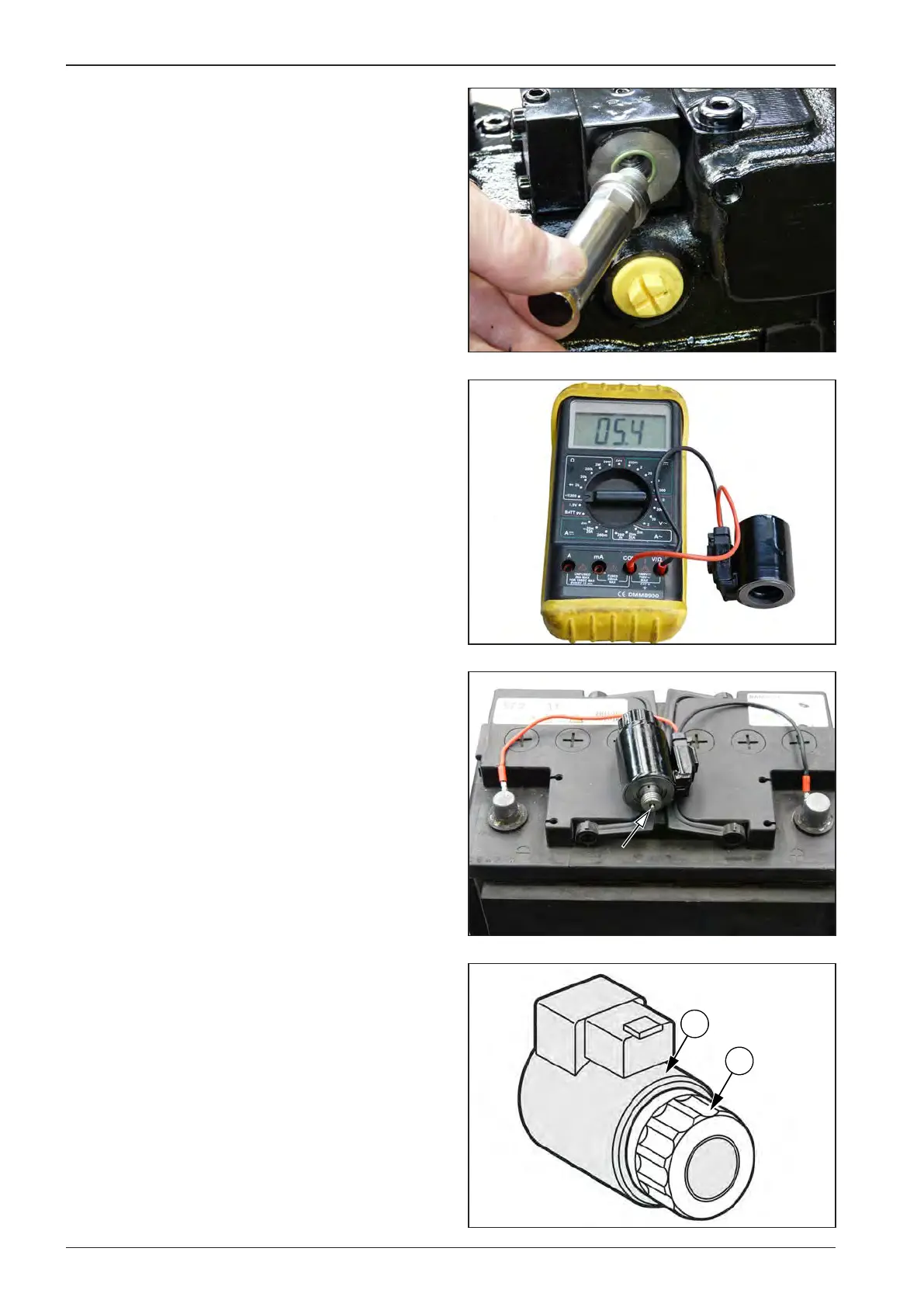

Measure the resistance of the Y3/Y4 magnetic coil.
The resistance value is approximately 6 Ohm.
Connect 12 V to the magnetic valve.
The valve (arrow) must visibly switch.
Change the position of the magnetic coil connector
The position of the connector can be changed by turning the
magnet body as needed.
Release the lock nut (1) of the magnet.
Turn the lock nut (1) by one turn to the left.
Turn the body of the magnet (2) to the required position.
Tighten the lock nut again. Tightening torque of the lock nut:
5+1 Nm.
