322 ARR1575

557D142

557D143

557D144

557D145

18 Troubleshooting

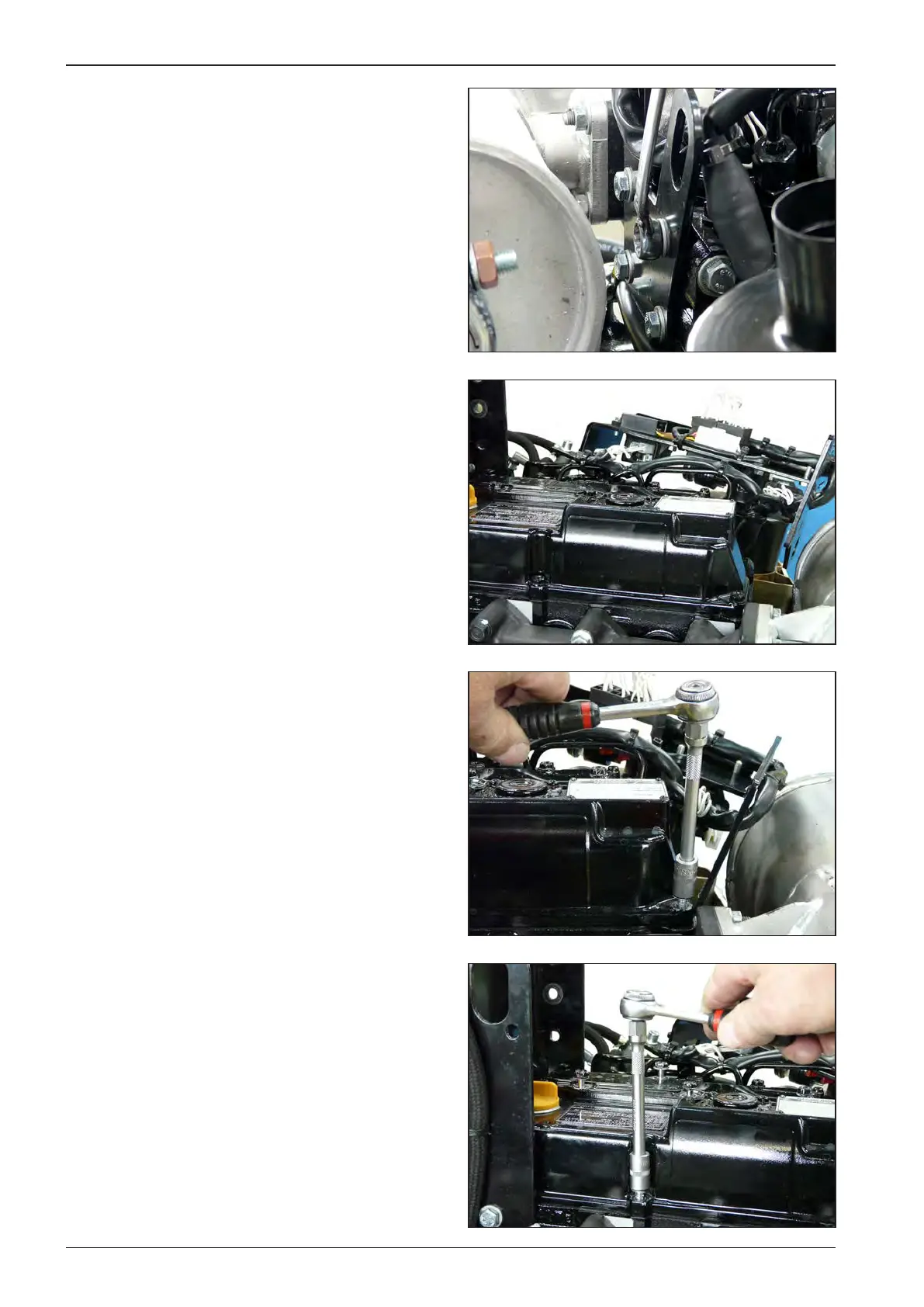

Screws at the back.

Screws at the front.

Remove the electrical sheet at the back / front.

Remove the valve cap.
