5 Frame

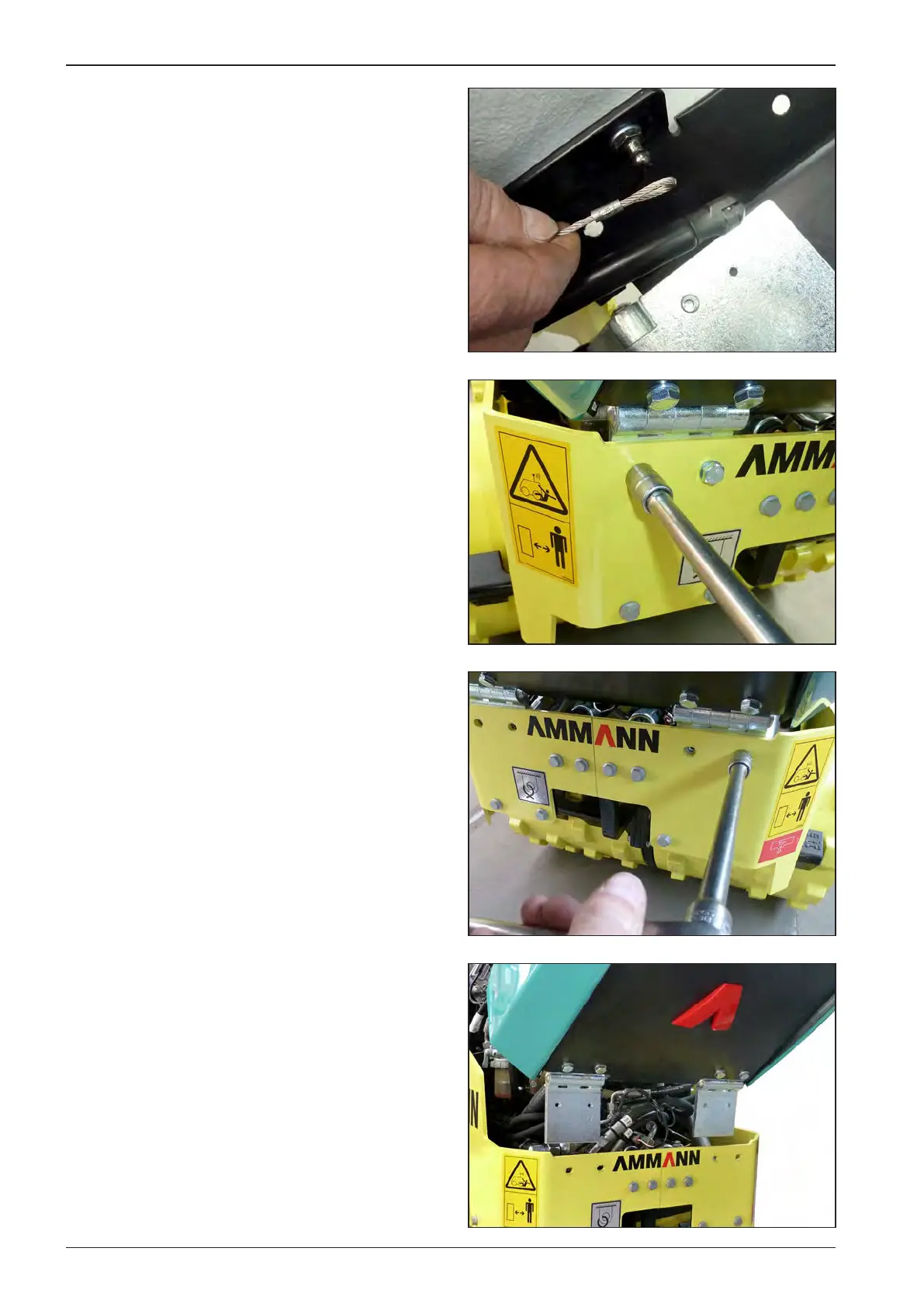

Release the wire rope from the bonnet on the left.
Lift the engine bonnet using acrane.
Remove the bottom screws of the butt hinge on the left.
Remove the bottom screws of the butt hinge on the right.
Lift the bonnet using acrane and put it aside.
