Ammann ARR 1575 - Bonnet Stop Elements and Swinging Support

346 pages

Save Page as PDF

To Next Page

To Previous Page

45ARR1575

557D169

557D178

557D179

557D180

WORKSHOP MANUAL

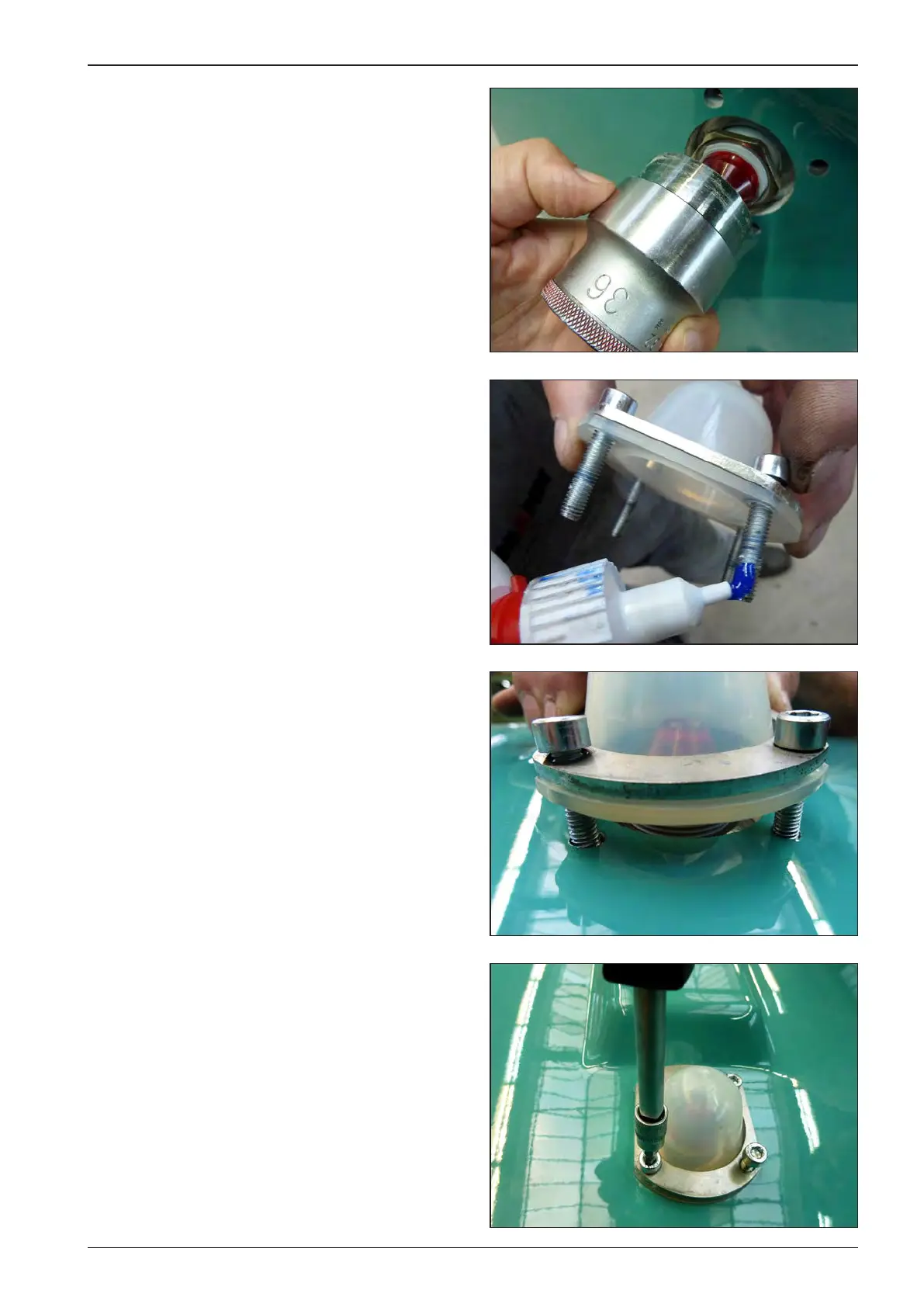

Install the sensor using the special tool.

Apply blue adhesive on the sensor cover screws.

Install the sensor cover.

The tightening torque of the cover is 10Nm.
