WORKSHOP MANUAL

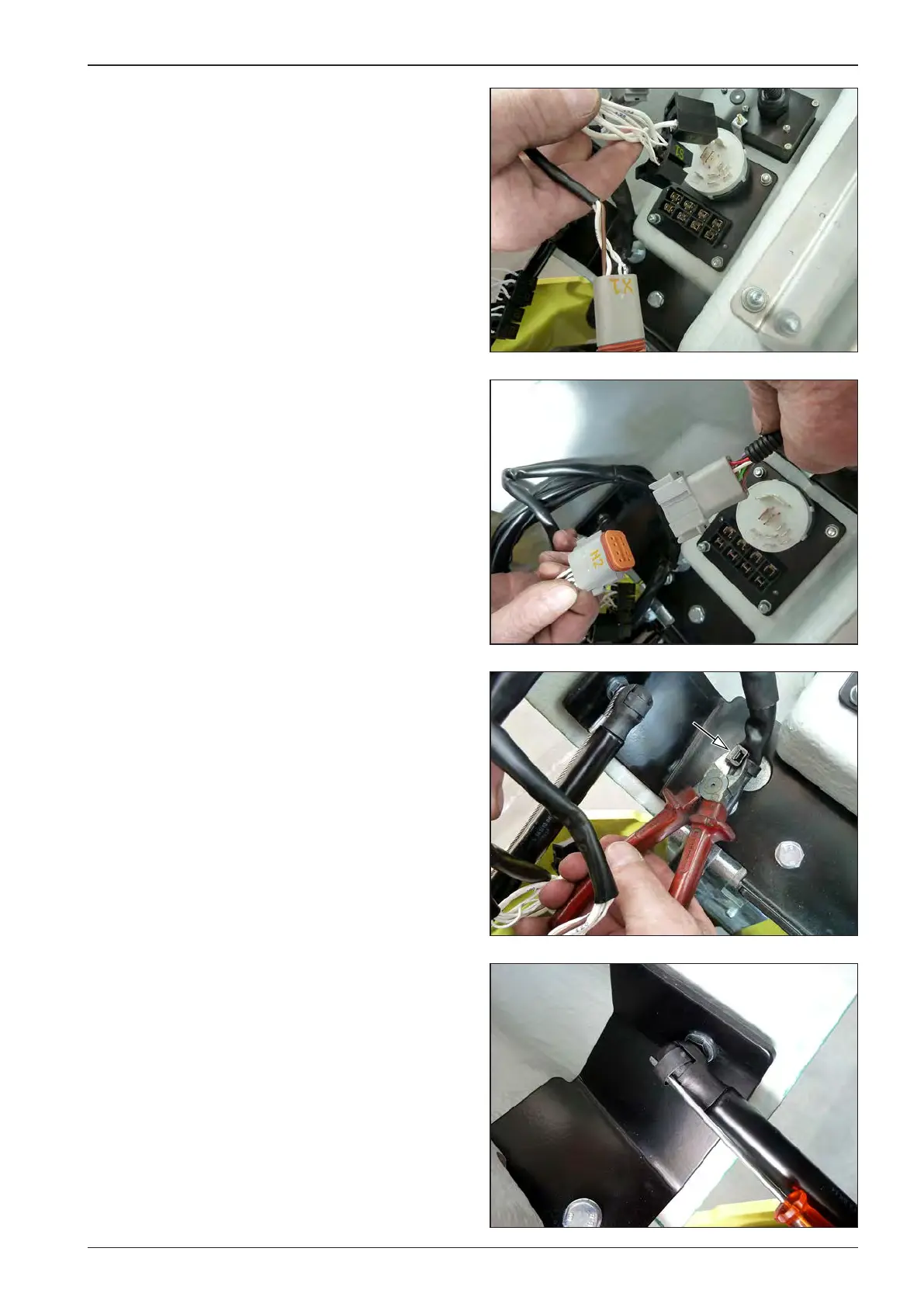

Disconnect the connectors of the ignition box.

Disconnect the N2 connector.

Remove the bonnet cable ties.

Use ascrewdriver to lift the clamp.

Pull away the gas cylinder from the ball joint.
