Ammann ARR 1575

To Next Page

To Previous Page

56 ARR1575

557D178

557D212

557D213

557D214

5 Frame

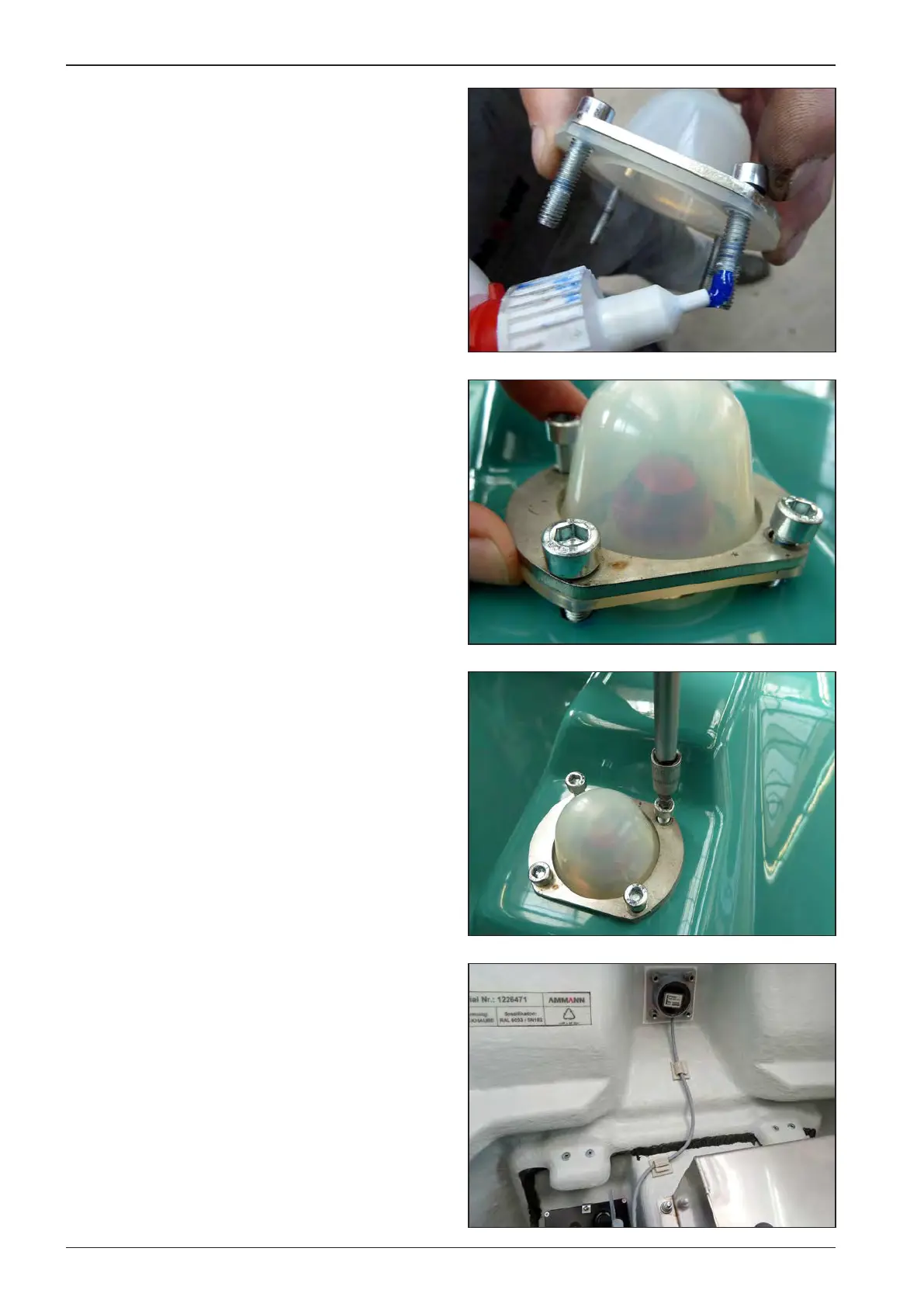

Apply blue adhesive on the sensor cover screws.

Install the sensor cover.

The tightening torque of the cover is 10Nm.

Fasten the sensor harness using the holders.
