Ammann ARR 1575

To Next Page

To Previous Page

60 ARR1575

557D543

557D541

557D542

5 Frame

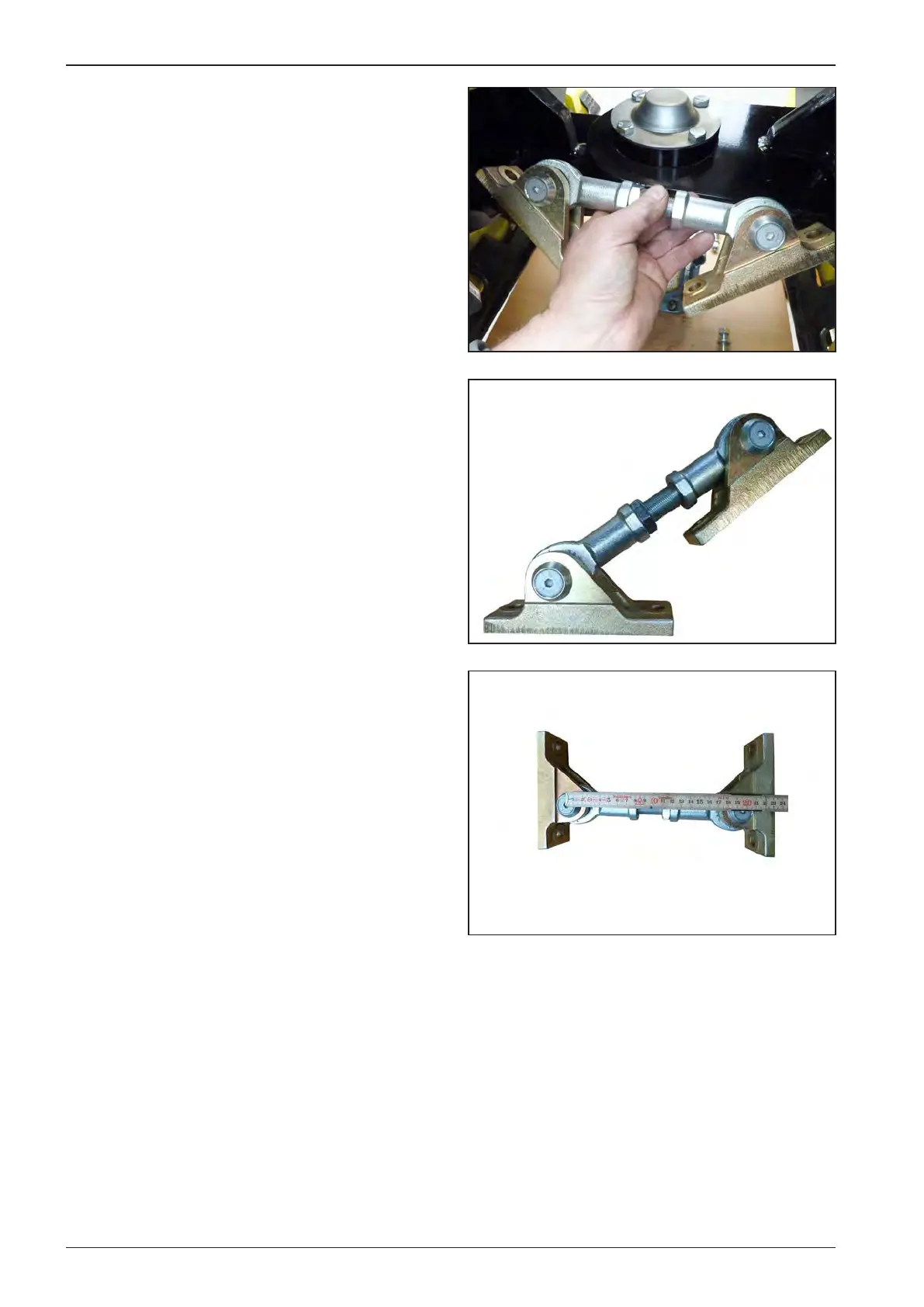

Before disassembling the swinging support, measure the dis-

tance between the joint centres. Use the measured value during

reassembly.

Remove the swinging support.
