WORKSHOP MANUAL
Installation

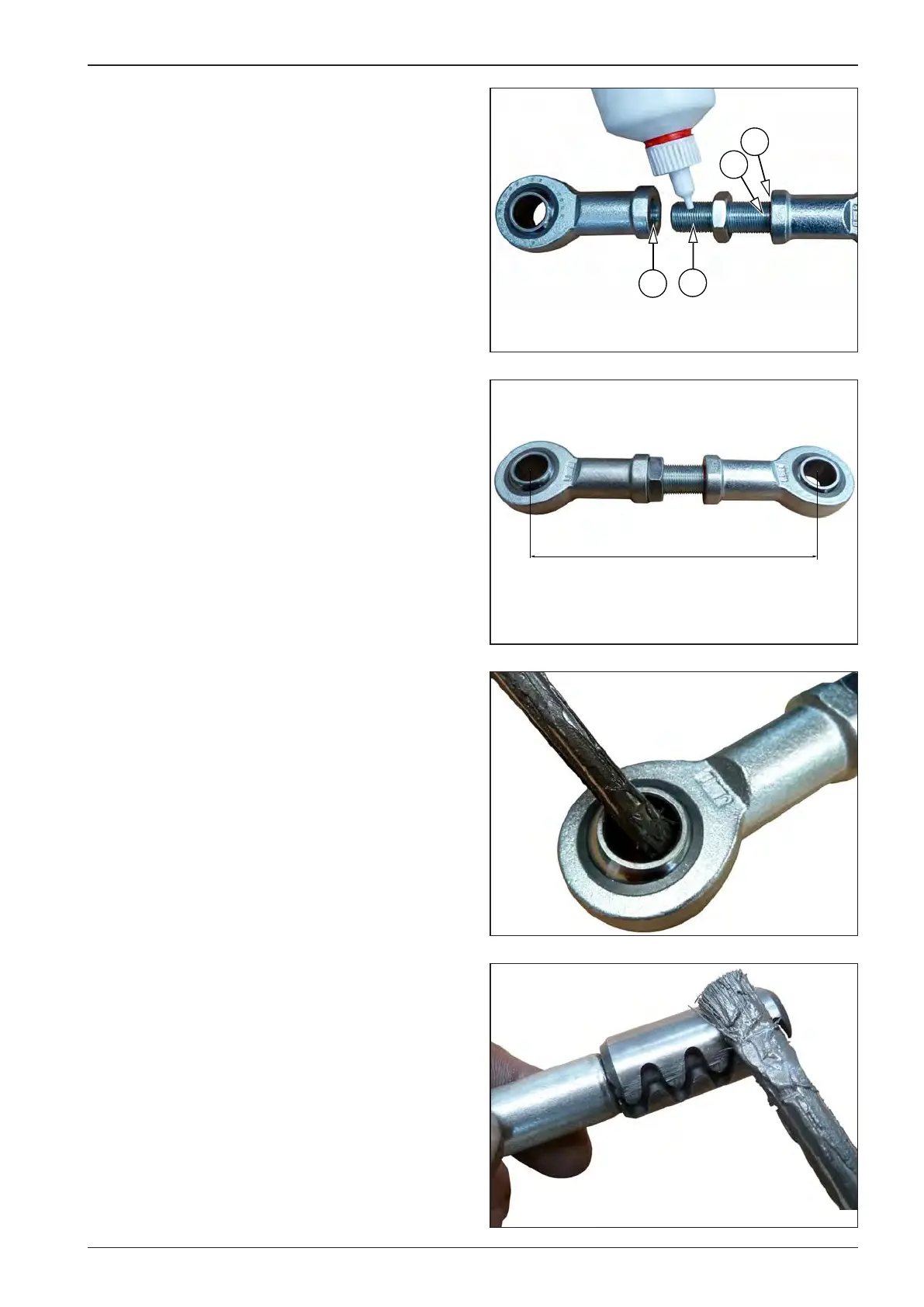

Apply red adhesive on the new rear joint head and swinging
support (1).
Apply blue adhesive on the new front joint head and swinging
support (2).
Mount the rear joint head on the swinging support all the way
to the stop.
Set the front joint head to the required distance.
Set the swinging support to the measured length.
Secure the nut.
Lubricate the boreholes in the joint head at the back and front.
Lubricate the clamping pins.
