Ammann ARR 1575

To Next Page

To Previous Page

78 ARR1575

557D609

557D610

557D611

5 Frame

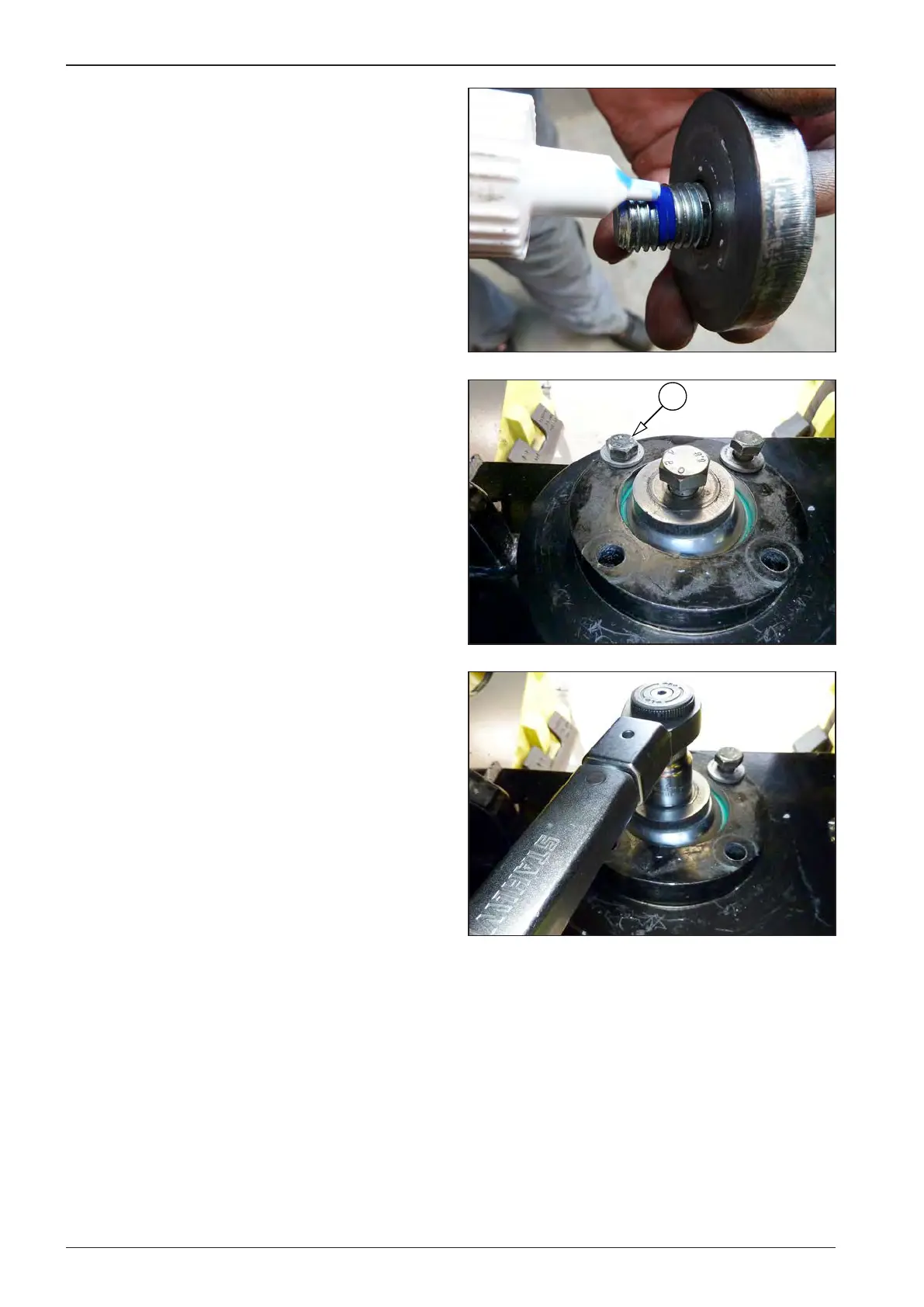

Mount the lock washer on the screw.

Apply blue adhesive on the screw.

Secure the swivel bearing with ascrew and awasher. The tight-

ening torque is 210 Nm.

Remove the mounting screws (1).

Main Page
