9-22

P129390-106 Operator Manual Troubleshooting

9.4.12 Exhaust

Rate Too Fast

Occurs if liquid cycle fast

exhaust rate is too fast.

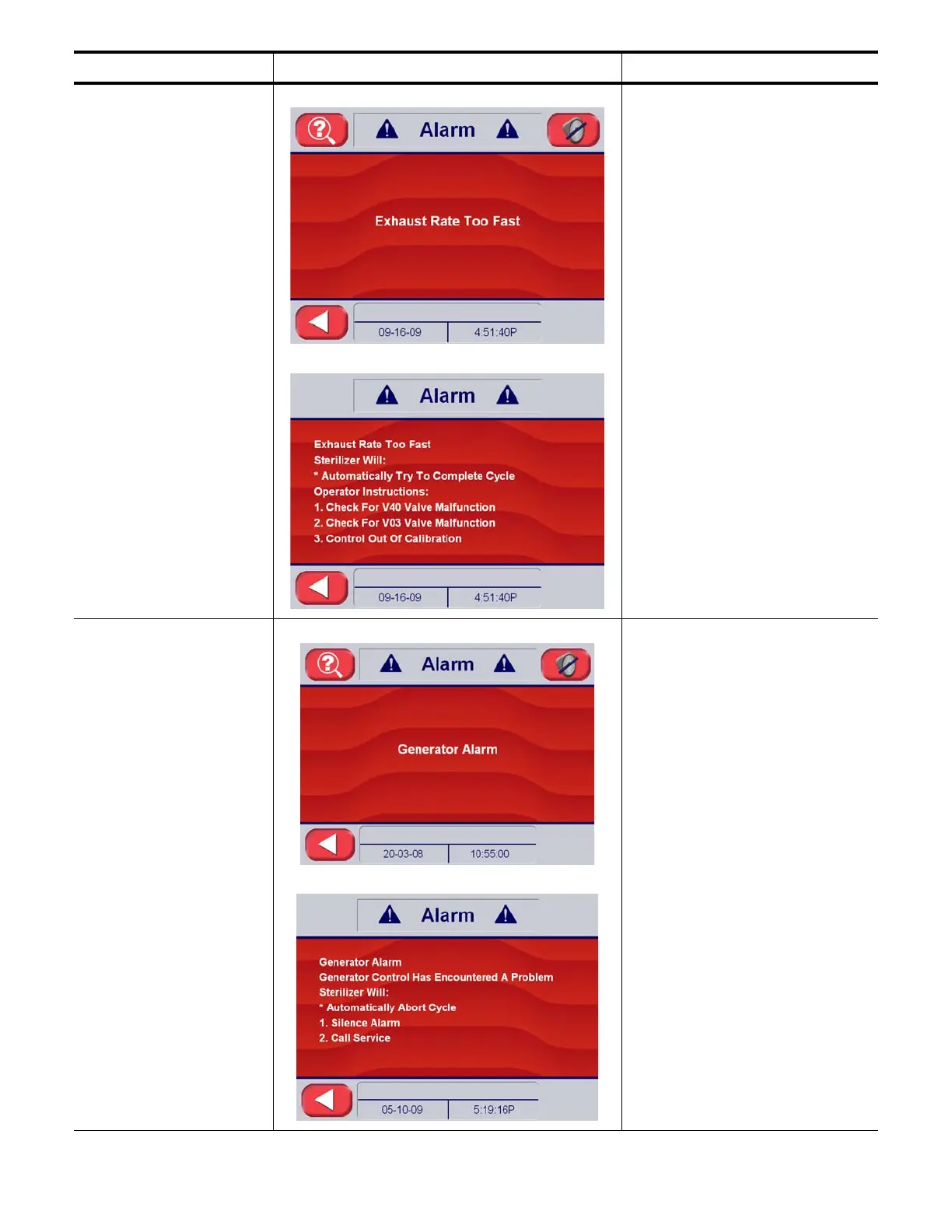

Alarm Screen

Alarm Detail

Chamber exhausted faster than

the expected rate.

Causes and Correction:

1. Valve malfunction – Repair

V40

2. Valve malfunction – Repair

V03

3. Chamber steam trap

malfunction – Repair

4. Control out of calibration –

Recalibrate (contact qualified

service person)

9.4.13 Generator

Alarm

Alarm Screen

Alarm Detail

Generator control has

encountered a problem.

Call STERIS service to resolve

issue.

Table 9-3. Operator Troubleshooting – Sensor Alarms (Continued)

Condition Alarm Screen on Sterilizer Control Service Information
