7-15

Cycle and Control Value Programming Operator Manual P129390-106

7.5.1 Utility Control The Utility Control screen is used to automatically control utility

services to the sterilizer. As shipped from the factory, this is set to

Manual Utilities control (i.e., utilities must be shut off and turned on

by an operator). If the sterilizer is equipped with an integral electric

steam generator, refer to S

ECTION 7.5.3, UTILITY CONTROL WITH

INTEGRAL ELECTRIC STEAM GENERATOR, PAGE 7-21 for additional

information regarding utility controls for the generator.

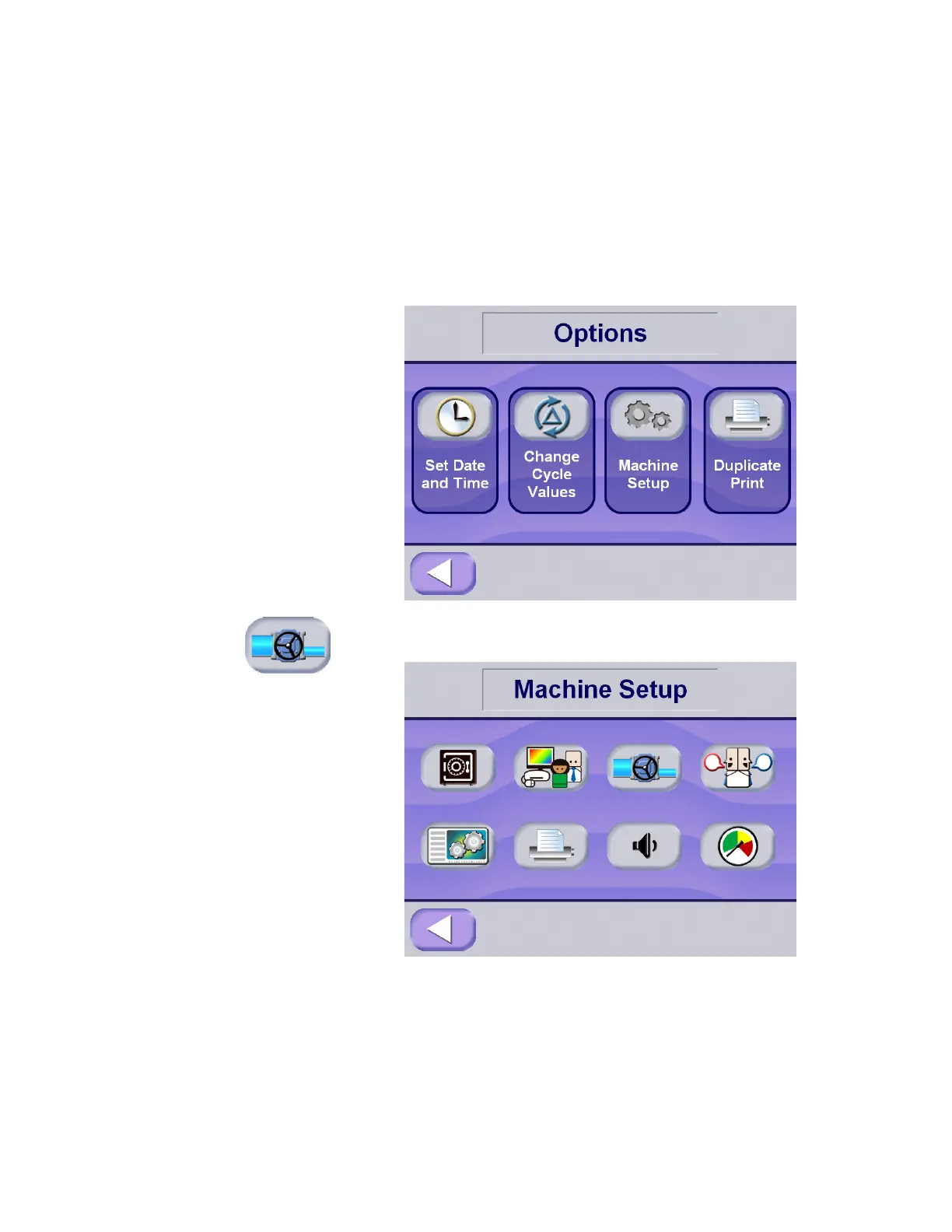

Utility Control is accessed by pressing Machine Setup at the options

screen.

Press Utility Control button to access the utility control function.
