6-26

P129390-106 Operator Manual Sterilizer Operation

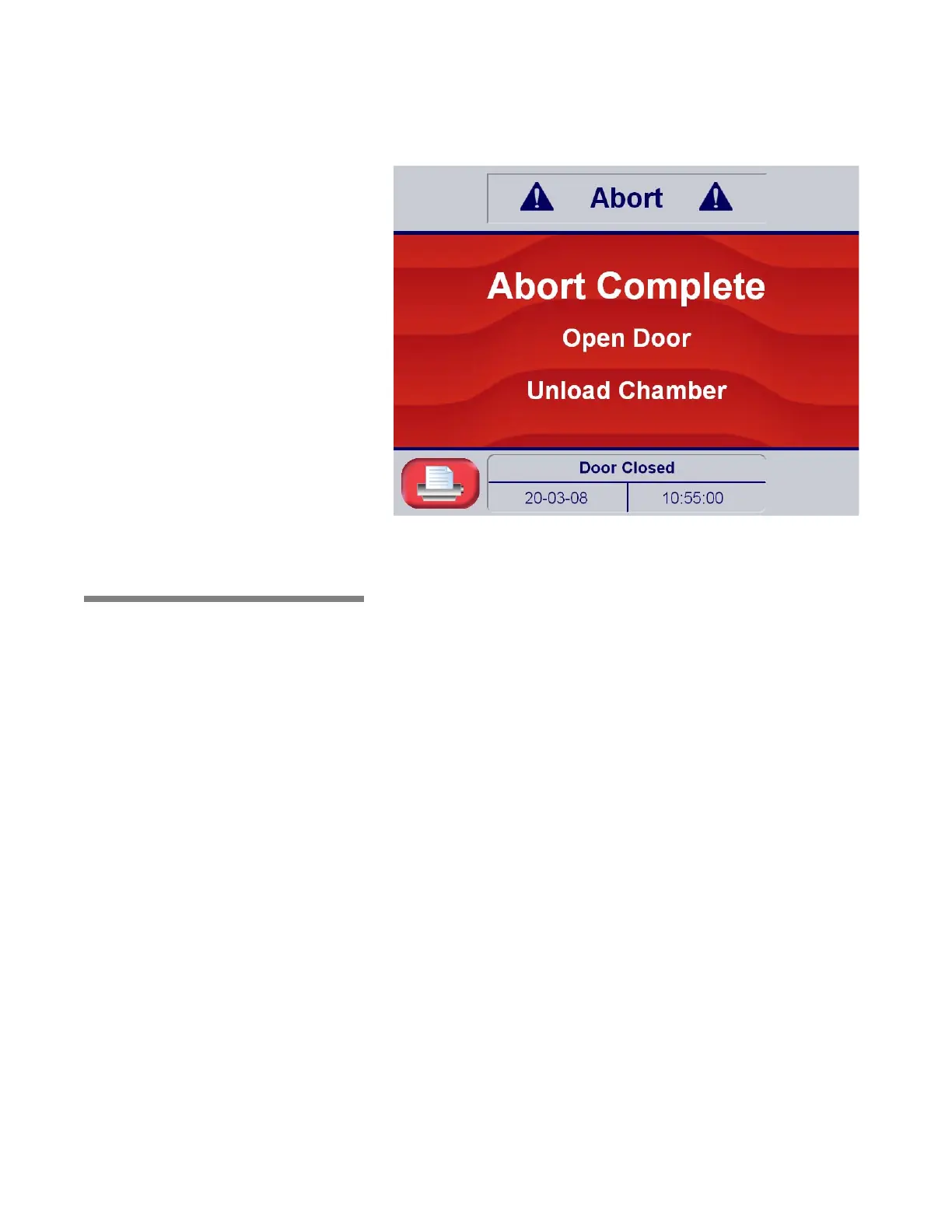

3. Once vapor removal is over, display changes to Abort Complete.

When complete the sterilizer chamber can be unloaded

following the instructions in S

ECTION 6.4, LOADING & UNLOADING

THE STERILIZER, PAGE 6-4.

6.12 Cycle Graph Prevacuum cycle graph for the Amsco Evolution Medium Steam

Sterilizer is shown in Figure 6-8 (page 6-27).
