P129390-106 Operator Manual Sterilizer Operation

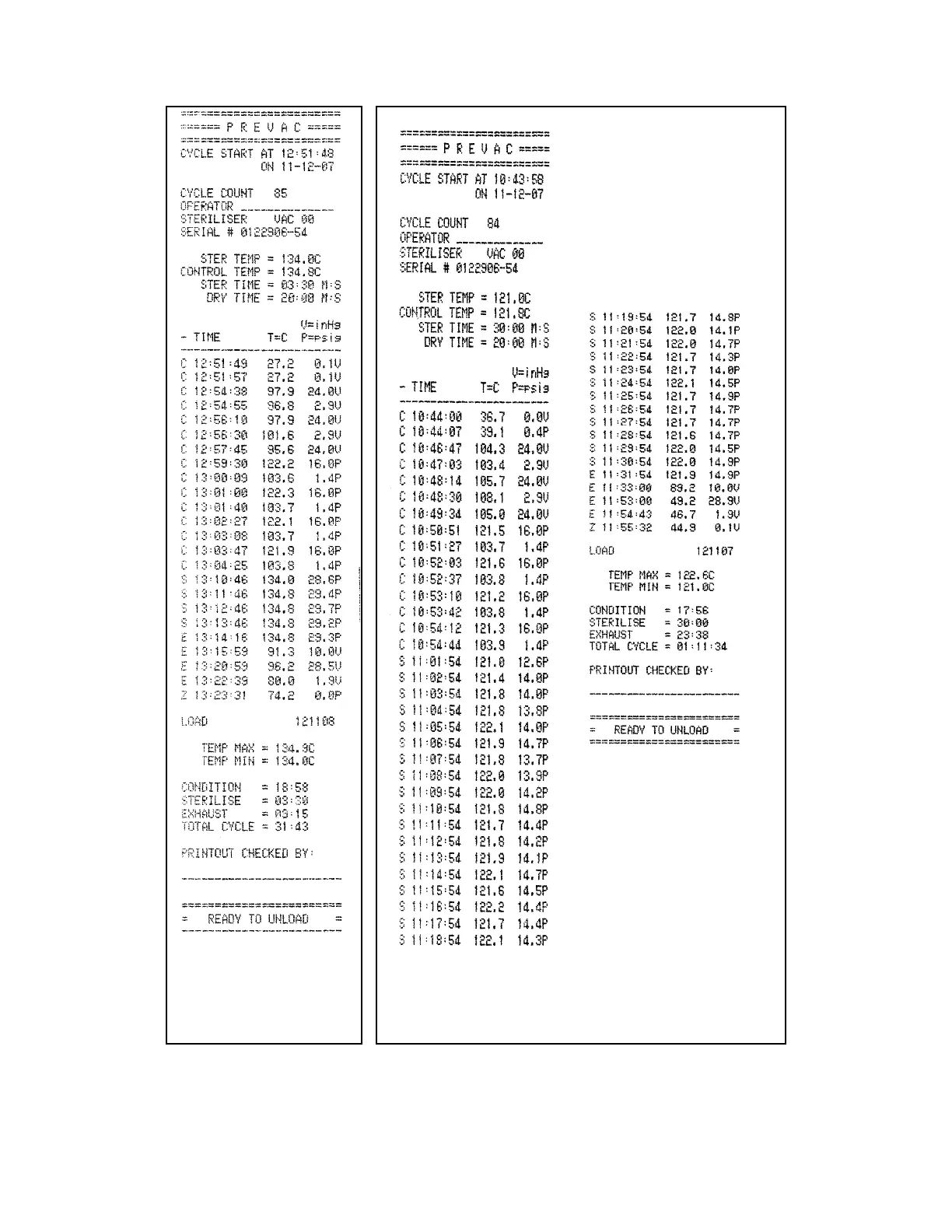

Figure 6-3. Prevacuum Cycle Printouts (134°C [273°F] and 121°C [250°F])

134°C (273°F) Prevacuum

Cycle Printout

121°C (250°F) Prevacuum

Cycle Printout
