USER MANUAL

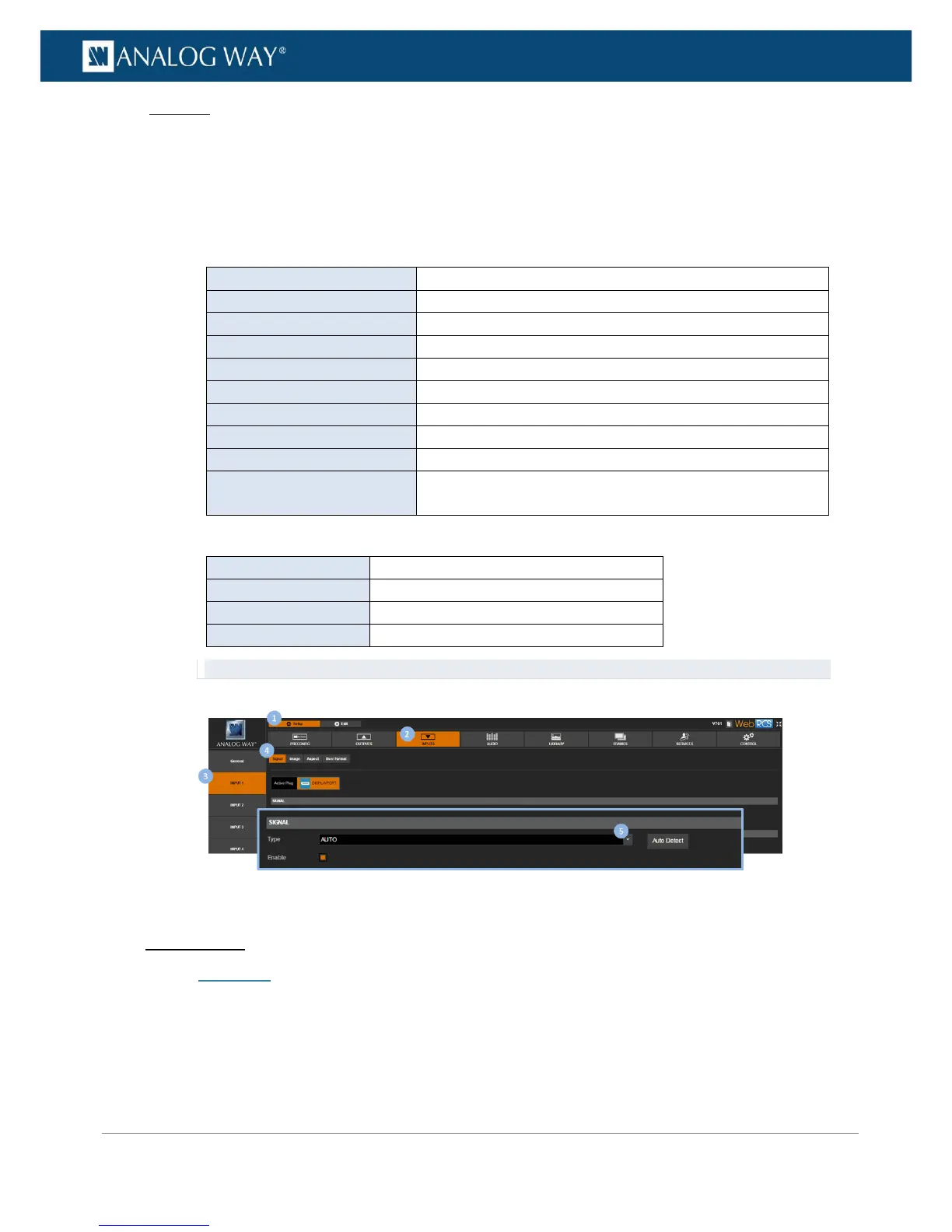

Web RCS
1. Go to the Setup menu on the Web RCS interface.
2. Click on the INPUTS tab to access the inputs setup page.
3. In the left side toolbar, select an input to access the selected input setup page.
4. Select Signal to access the input plug settings page.
5. Under SIGNAL > Type, select the input signal type/color space for the plug.
List of possible input signal types (analog plugs):
SDTV COMPOSITE
Composite signal 0-700mV
SDTV YC
Y/C signal 0-700mV
VIDEO RGBS
RGBs signal with a TTL composite synchro (only video format)
VIDEO RGSB
RGB signal with synchro on green (SOG) (only video format)
VIDEO YUV
YUV signal 0-700mV
COMPUTER SOG
RGB signal with synchro on green (SOG)
COMPUTER BW
Only Green signal with synchro (SOG) converted to grey level
COMPUTER HV
RGB signal with separate TTL H/V synchro
COMPUTER TTL COMPOSITE
RGB signal with a TTL composite synchro
COMPUTER ANA
COMPOSITE
RGB signal with an analog composite synchro
List of possible input color spaces (digital plugs):
AUTO
Automatic color space selection
YUV
YUV (YCbCr ITU-R BT.601 or YCbCr BT.709)
RGB FULL (0-255)
RGB Full scale (0-255)
RGB LIMITED (16-235)
RGB Limited scale (16-235)
TIP: Use AUTO to automatically select the signal type
Related topics:
• Plug status
