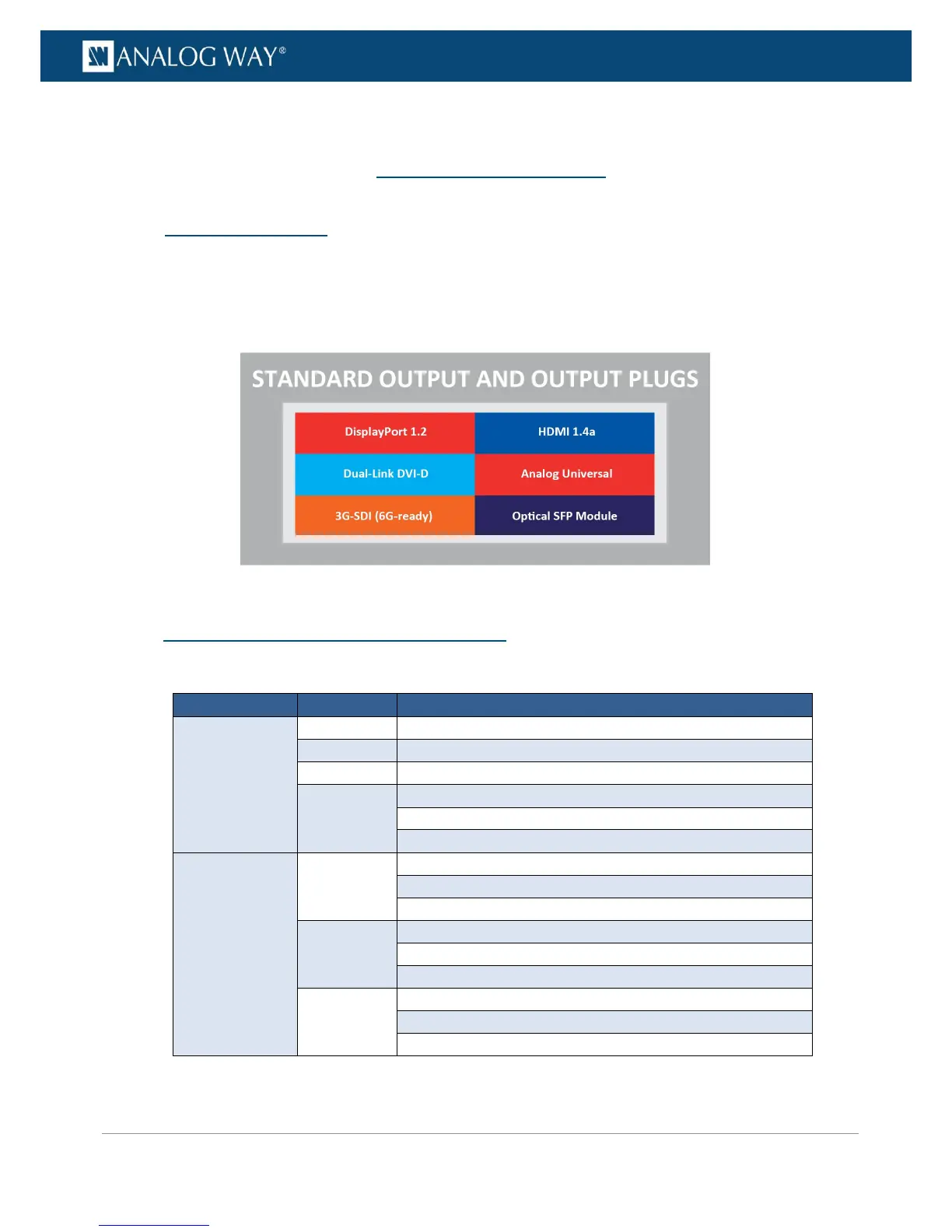

USER MANUAL
An output is a group of plugs that deliver the same video content under various signal types.
By default, each VIO 4K unit is equipped with one standard output that contains the following plugs:
The following table provides information on the list of supported output formats and signals:
Plug type
Formats
Signals
Universal
Analog (HD15)
SDTV
YCbCr ITU-R BT.601
EDTV
YCbCr ITU-R BT.601
HDTV
YCbCr ITU-R BT.709
Computer
RGBHV
RGBs
RGsB
DVI-D Dual-Link
EDTV
YCbCr ITU-R BT.601
RGB Full scale (0-255)
RGB Limited scale (16-235)
HDTV
YCbCr ITU-R BT.709
RGB Full scale (0-255)
RGB Limited scale (16-235)
Computer
YCbCr ITU-R BT.601
RGB Full scale (0-255)
RGB Limited scale (16-235)
6 Output management
6.1 What is an output?
6.2 Supported outputs (formats and signals)
