USER MANUAL

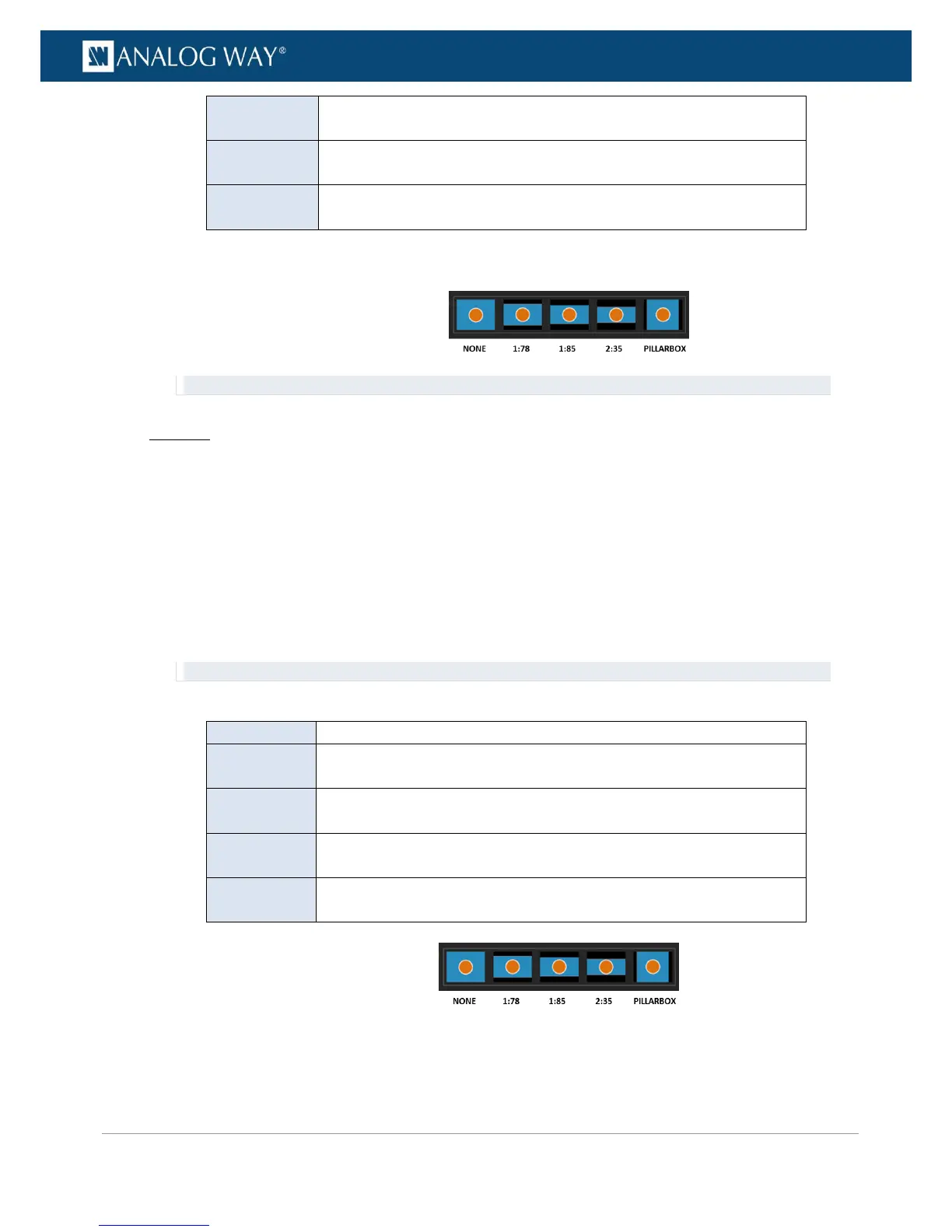

LETTERBOX
1:85
Letterbox 1.85: 1 means that a cinema 1.85 : 1 content has been inserted
in a narrow aspect ratio video
LETTERBOX
2:35
Letterbox 2.35: 1 means that a cinema 2.35 : 1 content has been inserted
in a narrow aspect ratio video
PILLARBOX
1:33
Pillarbox 1.33: 1 means that a 4/3 content has been inserted in a wider
aspect ratio video
TIP: Use the Reset command to reset all cropping adjustments.
Web RCS
1. Go to the Setup menu on the Web RCS interface.
2. Click on the INPUTS tab to access the inputs setup page.
3. In the left side toolbar, select an input to access the selected input setup page.
4. Click on the Aspect tab to access the input image aspect ratio and size settings page.
5. Under CROPPING, use the different cropping adjustments to crop the image:
• Crop Top: Crop the image on the top.
• Crop Bottom: Crop the image on the bottom.
• Crop Left: Crop the image on the left.
• Crop Right: Crop the image on the right.
TIP: Select a Predefined cropping to apply a predefined cropping to the input image.
Available predefined croppings include:
NONE
No predefined cropping
LETTERBOX
1:78
Letterbox 1.78: 1 means that a 16/9 content has been inserted in a
narrow aspect ratio video
LETTERBOX
1:85
Letterbox 1.85: 1 means that a cinema 1.85 : 1 content has been inserted
in a narrow aspect ratio video
LETTERBOX
2:35
Letterbox 2.35: 1 means that a cinema 2.35 : 1 content has been inserted
in a narrow aspect ratio video
PILLARBOX
1:33
Pillarbox 1.33: 1 means that a 4/3 content has been inserted in a wider
aspect ratio video
