Chapter 6 Performance Test
6-4
6.3 Performance Test Items
This section describes the following test items.
•
Operating frequency range
•
Input level
•
Pattern
•
Error detection
6.3.1 Operating frequency
(1) Specifications

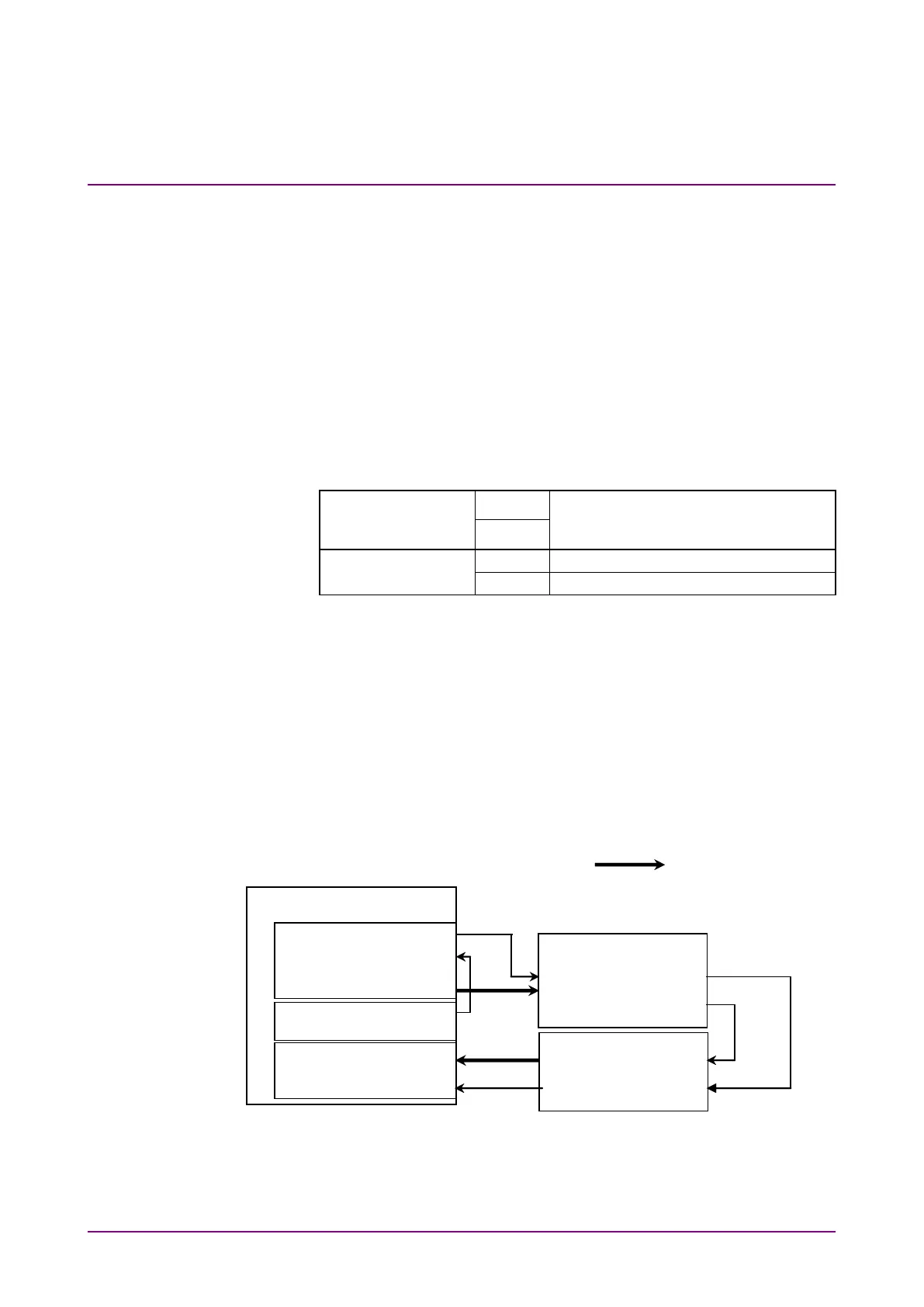

Table 6.3.1-1 Specifications
Model
Option
Specifications
x01
MP1862A
No
4 to 28.1 GHz
Yes
4 to 32.1 GHz
(2) Connection
Figure 6.3.1-1 shows the connection example using MP1861A,
MU183020A (MU183020A-x01, x22/x23, x30), MP1862A,
MU183040A/B (MU183040A/B-x01, x20), and MU181000A/B.
Before connecting the devices, be sure to use a sampling oscilloscope
to check if the frequency and level of the signals output from the
MP1862A is proper.
信号発生器
Ext CLK IN
Data IN 1/ 2
Data Out
Clock Output
Ext CLK IN
Data In
CLK OUT
Data OUT 1/2
MP1800A
MU183020Ax2
MU181000B
MU183040B x2
Data Out
Ext CLK IN
Ext CLK IN
Data In
Clock Out
MP1861A
MP1862A
32G Data x2
CLK Out
Figure 6.3.1-1 Module Connection
