4.3 Displaying Measurement Results
4-7
4
Window Operations
4.3.2 Error/Alarm Result Displays
Measurement results are displayed only when both of the following
conditions are met:
MP1862A is connected to MP1800A to which MU183040A/B or
MU183041A/B is installed.
The DEMUX-ED Link button is on.
When the DEMUX-ED Link button is off, hyphens are displayed instead
of measurement results. The DEMUX-ED Link button is available only
when MU18304xA/B is in the 2ch Combination state.
In this area, measurement results obtained from MU183040A/B or
MU183041A/B are compiled and displayed.
This section explains the measurement results when installing the
following mainframe and modules.
Mainframe: MP1862A
MP1800A-015
Slot4: MU183040A or MU183040B Data1-2 2ch Combination

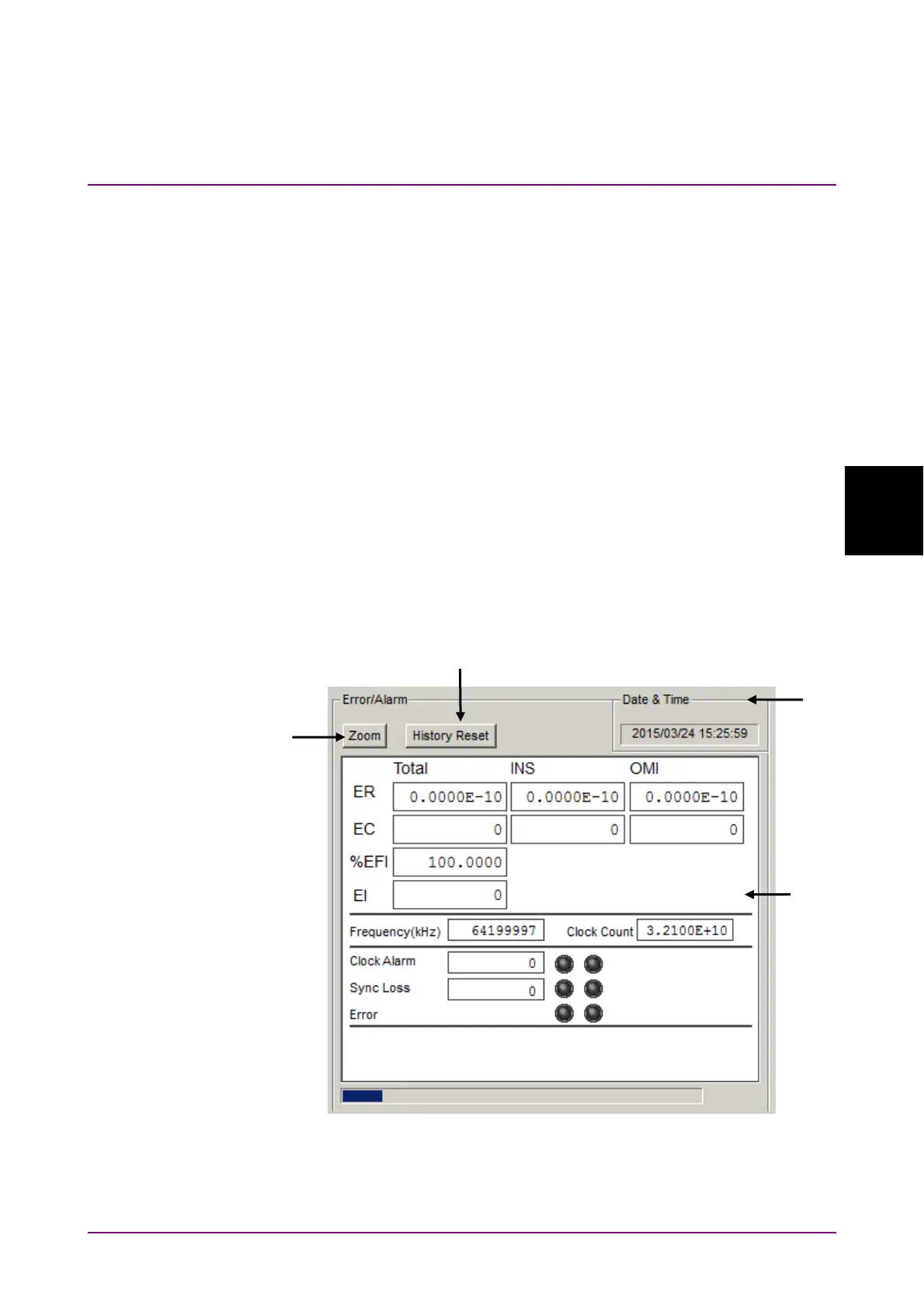

Figure 4.3.2-1 Items when Error/Alarm selected
[1]
[2]
[3]
[4]
To Next Page
