4.10.1 Combination function
The Combination function can synchronize generation or reception of
patterns among channels of MU183020A/MU183021A and
MU183040A/MU183041A and evaluate 40 Gbit/s application and 100
Gbit/s application.
By combining four 28 Gbit/s channels by the MU183021A, the serial data
at 111.8 Gbit/s of OTU4 (Optical channel Transport Unit 4) can be
generated.

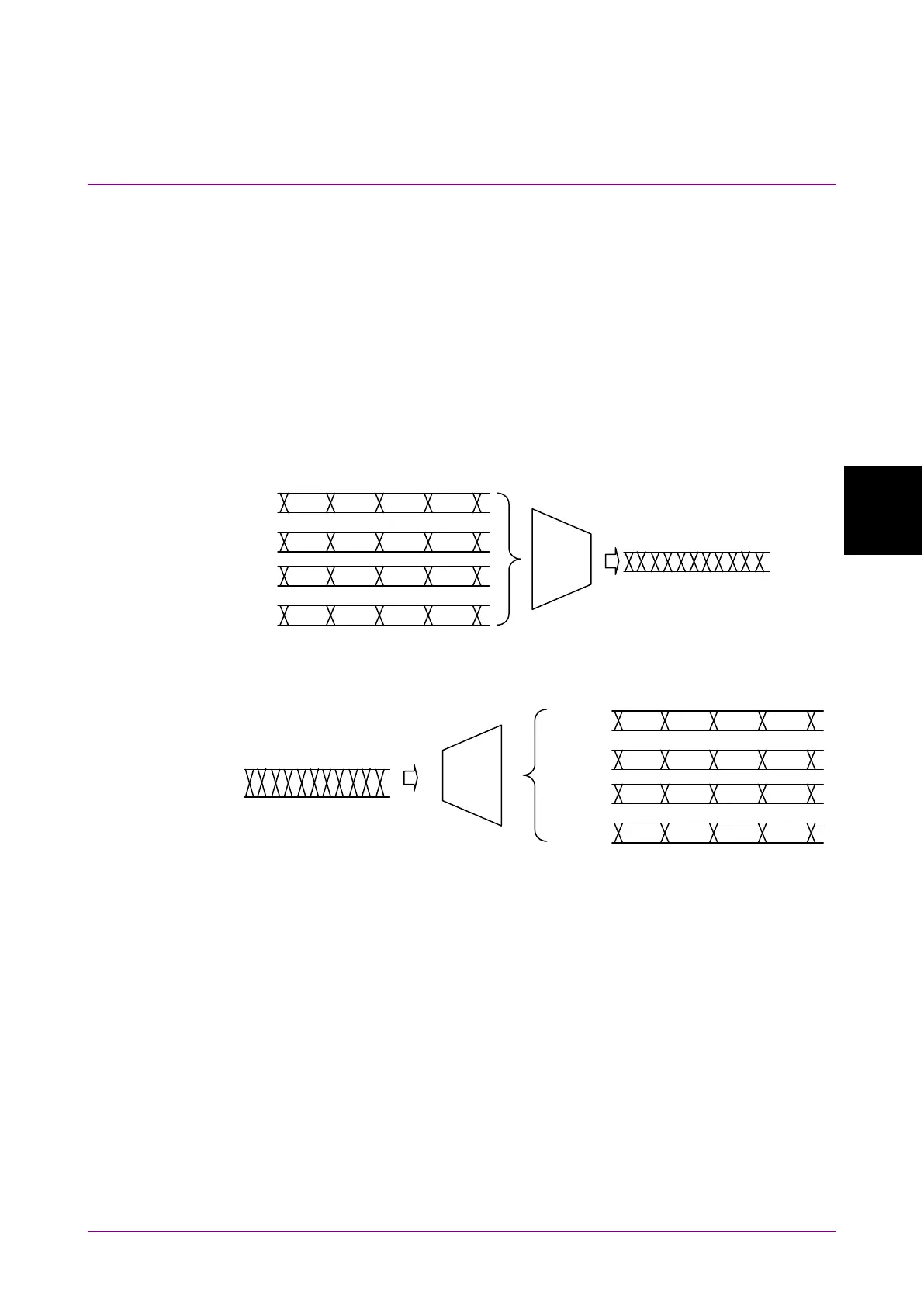

Figure 4.10.1-1 4ch Combination pattern generation/reception
By combining two channels of 20 Gbit/s data, 40 Gbit/s serial data that is
bit rate of 40 GbE or OTU3 can be generated.
Different from the conventional method of combining four 10 Gbit/s data,
this function can evaluate multiple DUTs by using a single MP1800A or
MT1810A
25Gbit/s
×
4
For combination of 100G 4:1MUX
Select for 100 Gbit/s data measurement
using MUX and DEMUX externally.
Pattern generation timing is controlled and
4:1
MUX
1 2 3 4 5 6 7 8 9 10
1:4
DEMUX
1 2 3 4 5 6 7 8 9 10
For combination of 100G 1:4DEMUX
Pattern reception sync control when measuring
100G data using external DEMUX
