Chapter 1 Overview
1-10.

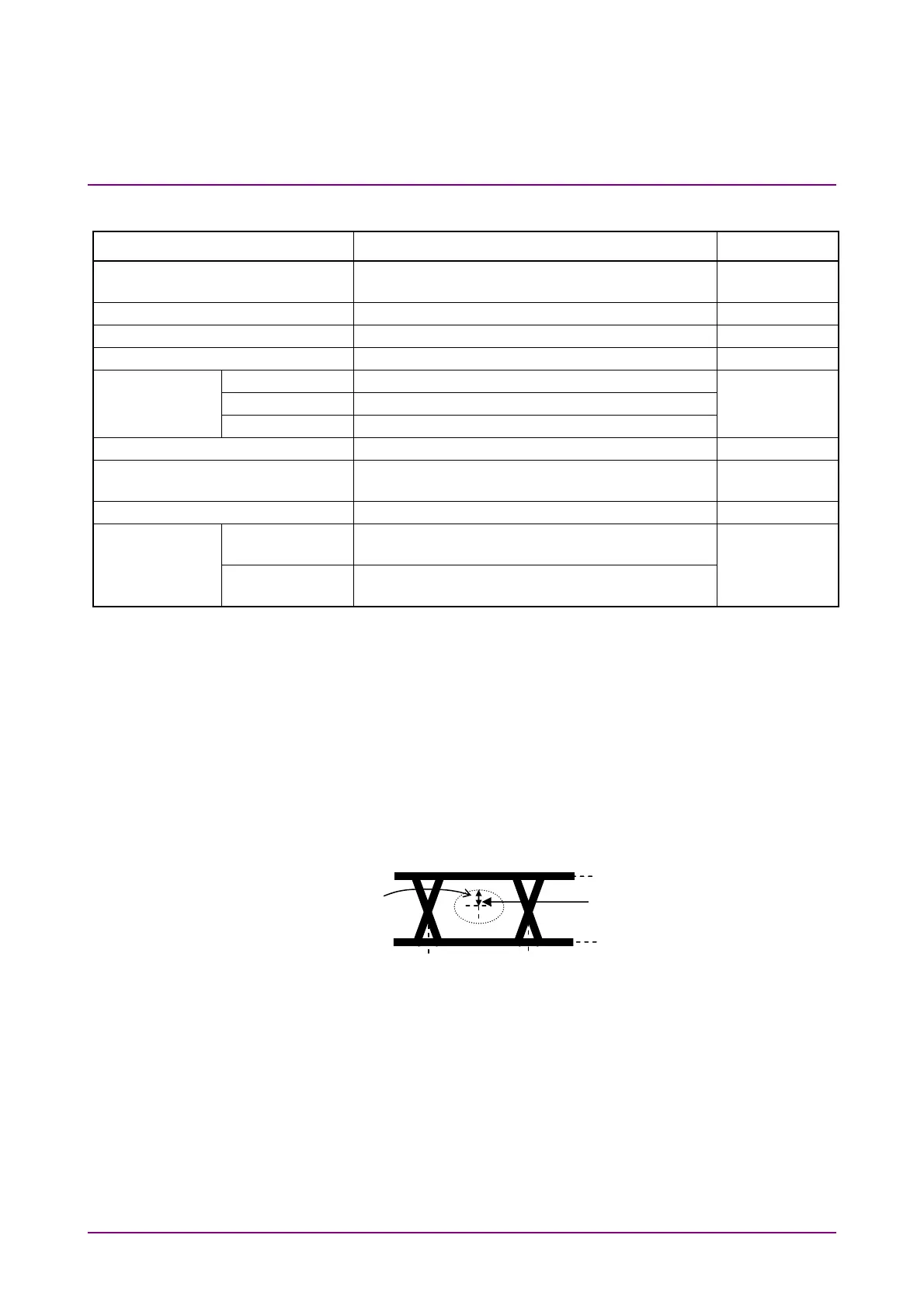

Table 1.3.1-1 Specifications for MP1862A (Cont'd)
Item Specifications Remarks
Auto Measurement *
5,
*
10
Auto Search, Eye Margin, Eye Diagram,
Bathtub
BER Measurement Results To be displayed on screen.
Control interface USB 2.0 or 1.1 Type B × 1
Channel setting Can be selected from CH1 to CH4.
Power
(AC adapter)
Input voltage AC 100 to 240 V *
11
Input frequency 50 to 60 Hz
Output power DC 19 V, 7.9A (Max)
Power consumption DC 19 V, 4 A
Dimension (Excluding
protrusions)
90.9 mm (H), 120 mm (W), 140 mm (D)
Mass 5.0 kg or less
Environmental
Performance
Operation
Temperature
+15 to +35
C (ambient temperature of
equipment)
Storage
Temperature
–20 to +60
C
*10: The Auto Search function obtains a point in the vicinity of the
following as an optimum point:
• (Voh + Vol) / 2 in voltage direction
• (P1 + P2) / 2 in phase direction
The Auto Search function runs normally on a signal observed by an
oscilloscope if there is no sample point within ±62mV in voltage
direction from the auto search point.
To execute the Auto Search function if Differential 50
or
Differential 100
is selected in the Input Condition box of the Data
area, input a signal by AC coupling.
*11: Operating voltage: within the range of +10% to –15% from the rated
voltage
Voh
Auto Search point
P1
P2
Vol
62 mV
